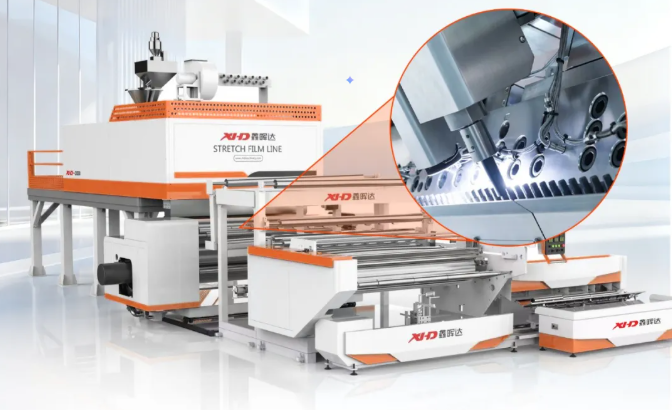

Xinhuida Integrated Smart Precision Die Head

Xinhuida Integrated Smart Precision Die Head | All-New Components, 10-Second Ultra-Fast Die Adjustment, Micron-Level Thickness Control

Self-Developed IM System - Intelligent Mechatronic Solution.Digital servo control of die-lip gap, with adjustment precision up to 0.01 mm.Product thickness tolerance held to+1%, with lip response time under 10s.Fully automatic, non-contact adjustment -safe and energy-efficient.Retrofit-ready: upgrade existing manual dies at low capital cost.Less trial scrap, higher line uptime and throughput

01 | Industry-Leading Performance Specs

Backed by Xinhuida's proprietary control technology and precision mechanical engineering, the XHD Smart Precision Die Head delivers across-the-board performance upgrades — directly addressing common industry pain points like thickness deviation and sluggish calibration. Key specifications include:

• Ultra-High Adjustment Precision: Lip gap adjustable to ±0.01mm for exceptional control over minute clearance tolerances

• Tight Product Tolerances: Finished film thickness accuracy held within ±1% — far exceeding standard industry benchmarks

• Lightning-Fast Response: Lip gap adjustment responds in under 10 seconds, compared to 10 minutes for conventional automated die heads — a dozens-fold improvement in calibration efficiency

• Low-Cost Smart Upgrade: Existing manual die heads can be retrofitted with the IM intelligent system, enabling automated production line upgrades without full die head replacement

02 | IM System — Core Technology Advantages

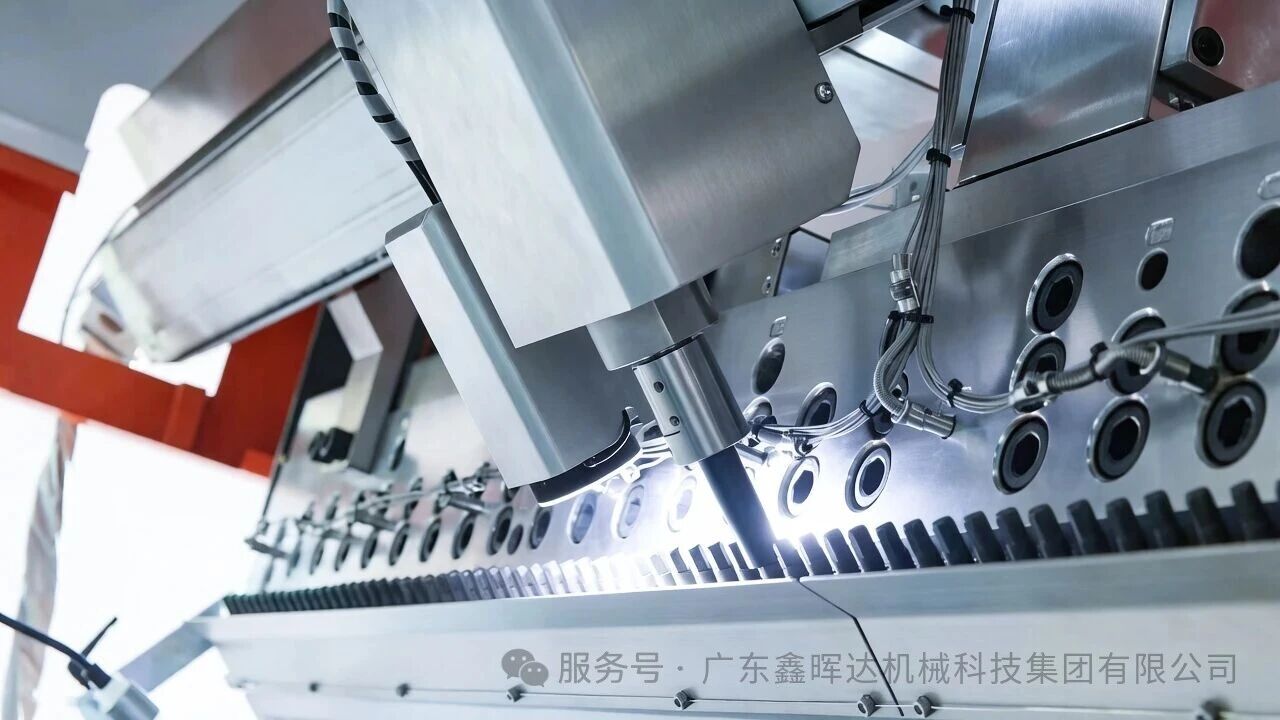

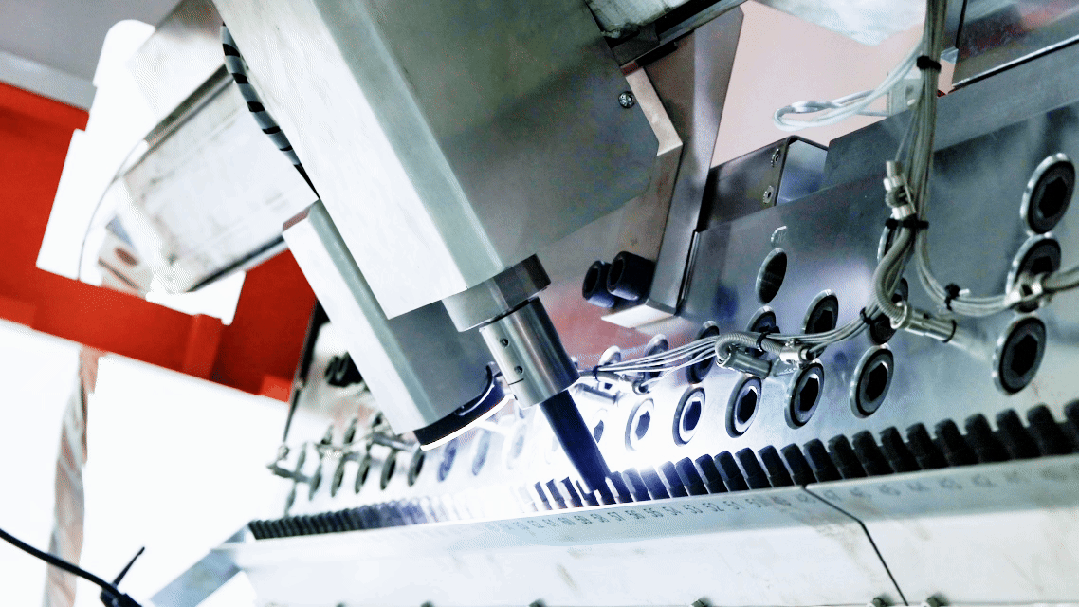

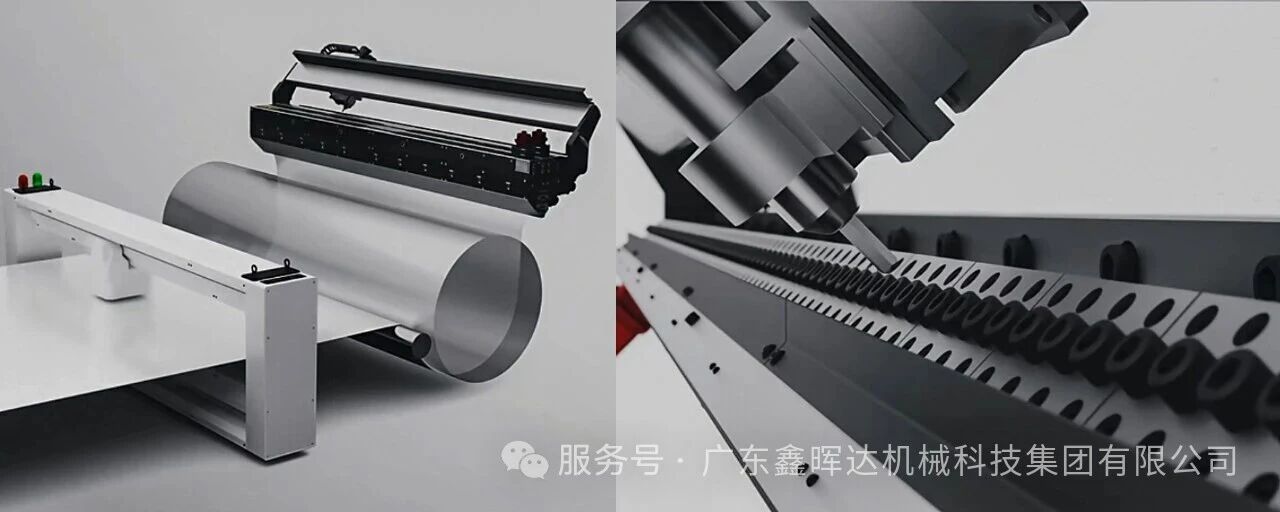

The IM System is Xinhuida's proprietary electromechanical integration platform, developed exclusively for our smart die heads. Leveraging advanced servo motor coordinated control and self-optimizing intelligent algorithms, it replaces traditional thermal bolt adjustment with fully digital, precision lip gap control. Speed, repeatability, and operational stability are all significantly enhanced. Four core advantages power high-efficiency production:

Real-Time Dynamic Response for Micron-Level Thickness Consistency

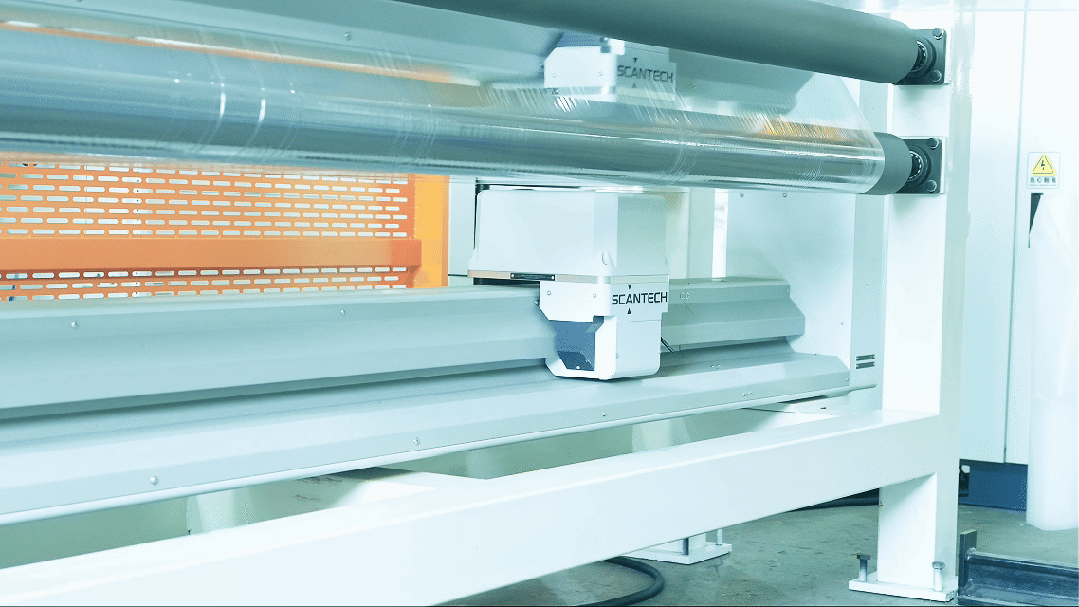

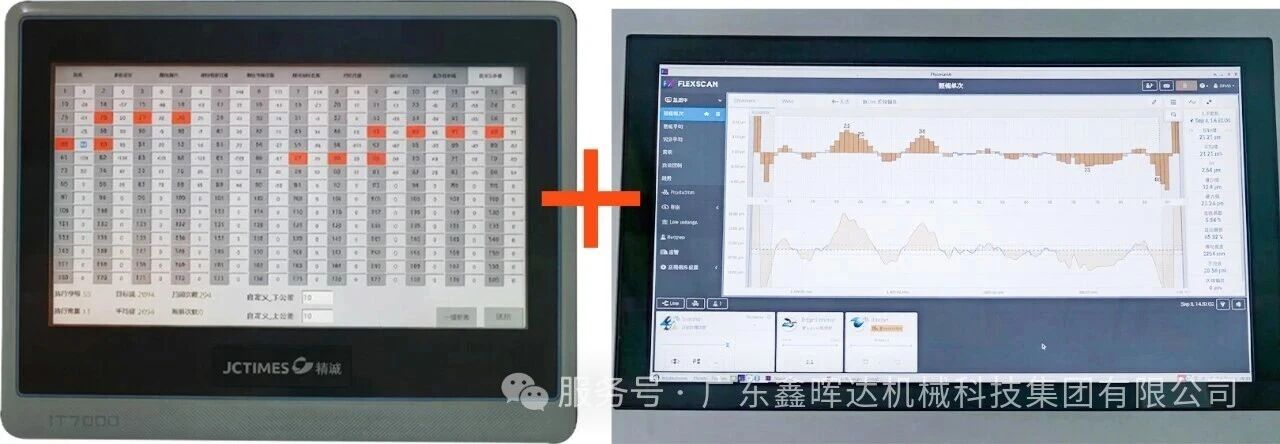

The system monitors film thickness variations 24/7, dynamically adjusting lip gap opening and die head temperature to correct cross-directional thickness deviation. It rapidly adapts to material changes, spec switches, and speed adjustments — shortening startup and changeover cycles, reducing uneven thickness and surface defects, and delivering consistently higher yield rates.

Non-Contact Smart Adjustment for Safer Operations
XHD's non-contact intelligent adjustment eliminates the need for operators to manually calibrate equipment near high-temperature die heads. This significantly reduces on-site hazards, minimizes human error, lowers dependence on operator experience, and raises both production standardization and workplace safety.

Energy Savings That Cut Long-Term Production Costs
Intelligent algorithms automatically match production parameters and optimize die head heating cycles to reduce power consumption. Combined with near-instant die adjustment, startup waste and changeover scrap are dramatically reduced — lowering raw material costs, labor hours, and carbon footprint.

Broad Compatibility with Legacy and New Equipment
No full die head replacement required. Existing manual die heads can be retrofitted with the IM intelligent servo system at lower cost and in less time. Compatible with CPE, CPP, stretch film, breathable film, medical film, and a wide range of other cast film production lines.

03 | Application Scenarios

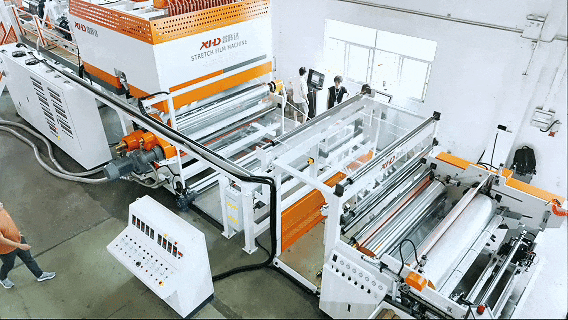

The Xinhuida Smart Precision Die Head is designed for wide compatibility across cast film production lines, supporting high-precision manufacturing of stretch film, CPE mattress film, CPP packaging film, medical protective film, breathable film, and more — across multiple specs and product types. It accommodates both high-volume mass production and small-batch flexible order runs, making it a core component for film manufacturers pursuing quality improvement, efficiency gains, and intelligent production upgrades.

Proprietary technology. Precision-driven results. The Xinhuida (XHD) Integrated Smart Precision Die Head breaks through the limitations of traditional extrusion processes with hard-core engineering — delivering digital, intelligent adjustment solutions that help every film manufacturer achieve lower waste, higher quality, and greater production efficiency.
