Model: XHD-80/120/80-2400
Equipped with jumbo roll winder and automatic paper cores unloading and loading system; it is one of the most popular models among our customers in Middle East countries. We had already sold more than 60 sets of jumbo roll stretch film machines to Turkey and its nearby countries. It can produce:

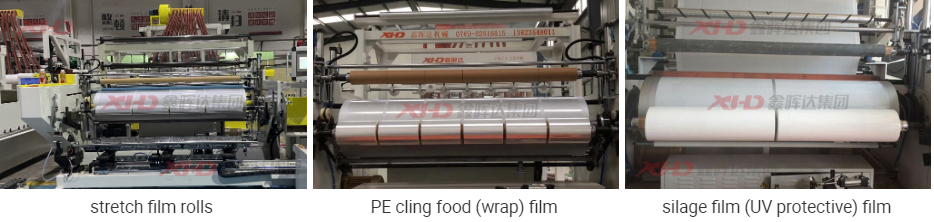

1) stretch film rolls with below specs
* 5 KGS/roll small hand use stretch film rolls.
* 10~18 KGS/roll machine use stretch film rolls.
* 60 KGS/roll jumbo rolls at 500 mm film width.
2) 8~10 microns 250~500 mm PE cling film jumbo rolls.
3) 30~35 microns 250 mm/300 mm/500 mm/750 mm silage film jumbo rolls (UV protective film rolls).
| Quantity: | |
|---|---|
XHD-80-120-80-2400
No. | Item | Description |
1. | Model: | XHD-80/120/80-2400 |
2. | Power supply: | 3 phases industrial power supply |
3. | Total Installation Power: | 280 KW (for the machine only) |
4. | Main Raw Material: | LLDPE, LDPE (few) & MLLDPE |
5. | Layers: | CBA three layers or CABAC five layers |
6. | Thickness of Film: | 8~50 microns. |
7. | Width of the Useful Film: | Maximum width: 2000 mm |
8. | Designed Linear Speed: | 250 M/Min |
9. | Extrusion Output: | 400-550 KGS/H |
10. | Dimensions (L×W×H): | 14×5.5×4.6 M (for reference only) |
11. | Gross Weight: | 20000 KGS (for reference only) |

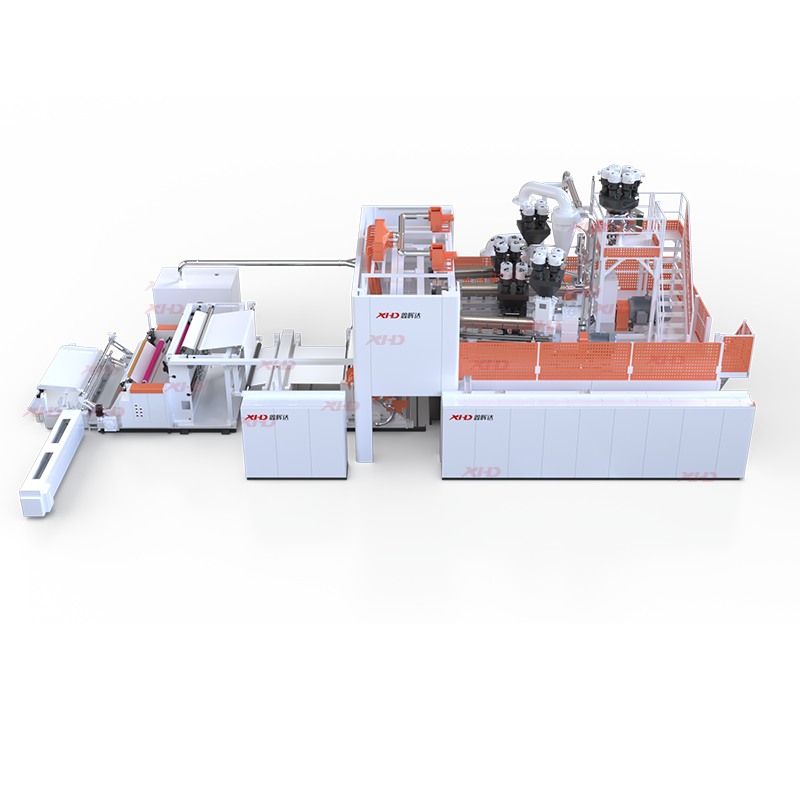

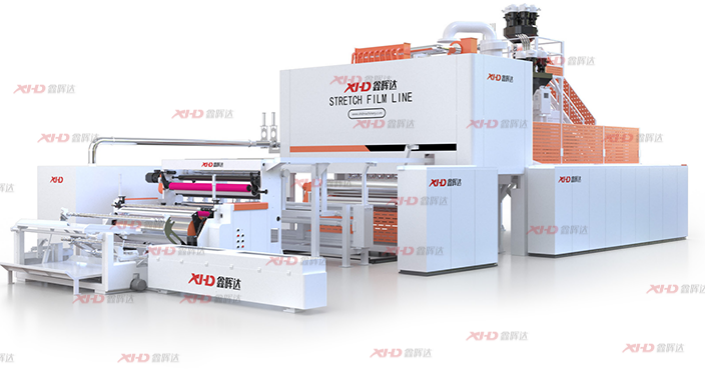

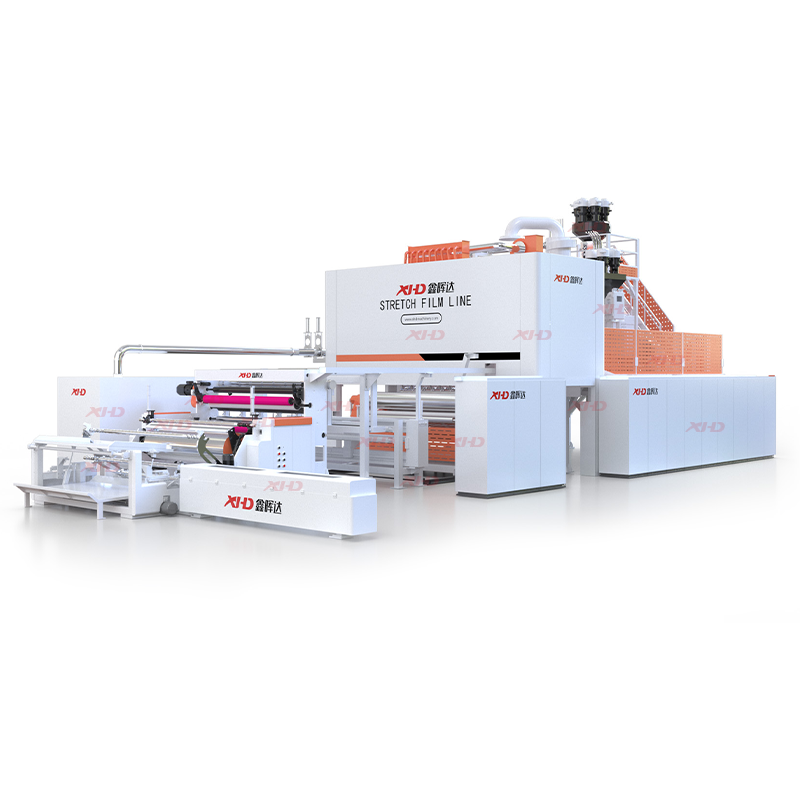

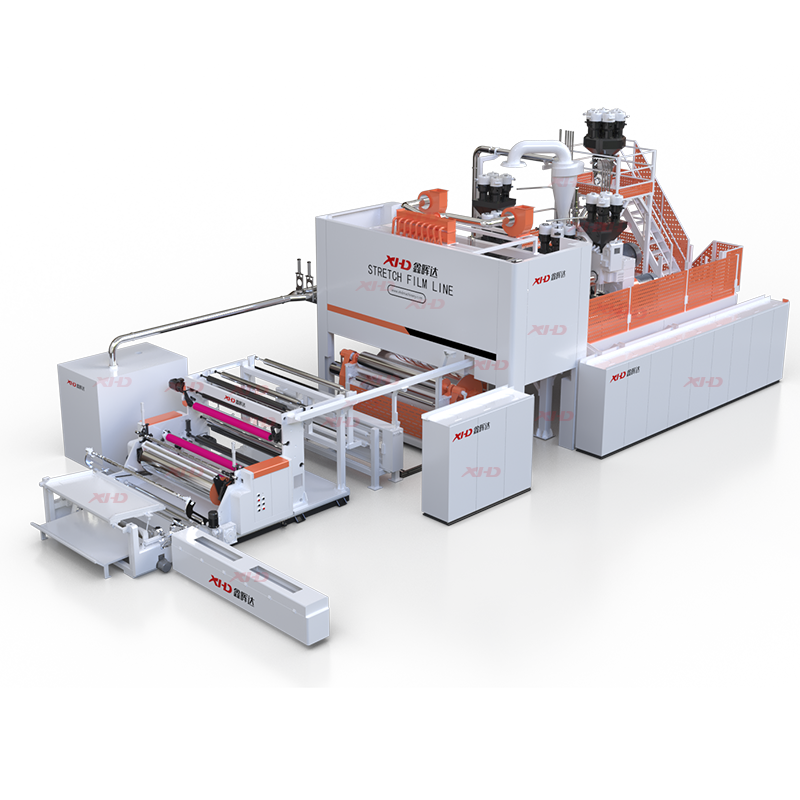

Need to make jumbo rolls of cast stretch film for wholesale or industrial use? Our Jumbo Roll Cast Stretch Film Production Line is built for high-volume, large-format production. It creates stable, high-quality jumbo rolls that are easy to unwind and distribute. Let’s explore how it can meet your bulk production needs!
We designed this line with three key features for bulk film production:
Large-diameter roll capacity: The winder handles rolls up to 1200mm in diameter and 200kg in weight, ideal for wholesale distribution. Each jumbo roll reduces packaging and shipping costs, as one roll replaces multiple small rolls.
Stable winding for smooth unwinding: Advanced tension control and automatic roll alignment prevent film wrinkles or slippage during winding. This ensures the jumbo rolls unwind evenly, even at high speeds in packaging machines.
High-speed production for bulk orders: The extruder and casting system run at up to 180 meters per minute, keeping up with large-scale demand. Produce more film in less time without sacrificing thickness uniformity or stretch performance.
Where will you use this production line? Here are common scenarios:
Wholesale film distribution: Manufacture jumbo rolls for resale to packaging suppliers. The large size reduces handling and storage costs for your customers.
Industrial packaging centers: Create jumbo rolls for in-house use in large factories. The stable unwinding ensures smooth operation in automatic pallet wrapping machines, improving warehouse efficiency.
Film converters: Use jumbo rolls as raw material for slitting into smaller rolls. The consistent quality makes slitting easier and reduces waste during processing.
We know bulk production needs reliable, efficient equipment:
Automated roll changing for non-stop operation: The dual-position winder switches to a new core automatically when one roll is complete. This eliminates downtime between rolls, keeping your production line running 24/7.
Simple maintenance for high-volume use: The heavy-duty bearings and reinforced rollers are designed for long-life operation. Regular maintenance focuses on basic checks, ensuring minimal disruption to your production schedule.
Here’s why manufacturers rely on our solution:
1. Customizable for your roll specs: Need a specific roll diameter, width, or core size? We can adjust the winder and casting system to match your exact requirements for jumbo rolls.
2. Stringent quality checks for bulk orders: Every line is tested with full-scale jumbo rolls to ensure winding stability and film consistency. We deliver only equipment that meets the highest standards for bulk production.
3. Expert support for large-scale operations: Our team has experience with wholesale film production and can help optimize your line for maximum output. We’re available 24/7 to solve any issues and keep your business profitable.
Whether you’re a film wholesaler, a large manufacturer, or a converter, our Jumbo Roll Cast Stretch Film Production Line streamlines bulk production. It reduces costs, improves efficiency, and delivers stable jumbo rolls that meet the demands of any packaging application. Ready to scale up your film production? Contact us today to discuss how we can tailor this line to your business!
No. | Item | Description |
1. | Model: | XHD-80/120/80-2400 |
2. | Power supply: | 3 phases industrial power supply |
3. | Total Installation Power: | 280 KW (for the machine only) |
4. | Main Raw Material: | LLDPE, LDPE (few) & MLLDPE |
5. | Layers: | CBA three layers or CABAC five layers |
6. | Thickness of Film: | 8~50 microns. |
7. | Width of the Useful Film: | Maximum width: 2000 mm |
8. | Designed Linear Speed: | 250 M/Min |
9. | Extrusion Output: | 400-550 KGS/H |
10. | Dimensions (L×W×H): | 14×5.5×4.6 M (for reference only) |
11. | Gross Weight: | 20000 KGS (for reference only) |
Need to make jumbo rolls of cast stretch film for wholesale or industrial use? Our Jumbo Roll Cast Stretch Film Production Line is built for high-volume, large-format production. It creates stable, high-quality jumbo rolls that are easy to unwind and distribute. Let’s explore how it can meet your bulk production needs!
We designed this line with three key features for bulk film production:
Large-diameter roll capacity: The winder handles rolls up to 1200mm in diameter and 200kg in weight, ideal for wholesale distribution. Each jumbo roll reduces packaging and shipping costs, as one roll replaces multiple small rolls.
Stable winding for smooth unwinding: Advanced tension control and automatic roll alignment prevent film wrinkles or slippage during winding. This ensures the jumbo rolls unwind evenly, even at high speeds in packaging machines.
High-speed production for bulk orders: The extruder and casting system run at up to 180 meters per minute, keeping up with large-scale demand. Produce more film in less time without sacrificing thickness uniformity or stretch performance.
Where will you use this production line? Here are common scenarios:
Wholesale film distribution: Manufacture jumbo rolls for resale to packaging suppliers. The large size reduces handling and storage costs for your customers.
Industrial packaging centers: Create jumbo rolls for in-house use in large factories. The stable unwinding ensures smooth operation in automatic pallet wrapping machines, improving warehouse efficiency.
Film converters: Use jumbo rolls as raw material for slitting into smaller rolls. The consistent quality makes slitting easier and reduces waste during processing.
We know bulk production needs reliable, efficient equipment:
Automated roll changing for non-stop operation: The dual-position winder switches to a new core automatically when one roll is complete. This eliminates downtime between rolls, keeping your production line running 24/7.
Simple maintenance for high-volume use: The heavy-duty bearings and reinforced rollers are designed for long-life operation. Regular maintenance focuses on basic checks, ensuring minimal disruption to your production schedule.
Here’s why manufacturers rely on our solution:
1. Customizable for your roll specs: Need a specific roll diameter, width, or core size? We can adjust the winder and casting system to match your exact requirements for jumbo rolls.
2. Stringent quality checks for bulk orders: Every line is tested with full-scale jumbo rolls to ensure winding stability and film consistency. We deliver only equipment that meets the highest standards for bulk production.
3. Expert support for large-scale operations: Our team has experience with wholesale film production and can help optimize your line for maximum output. We’re available 24/7 to solve any issues and keep your business profitable.
Whether you’re a film wholesaler, a large manufacturer, or a converter, our Jumbo Roll Cast Stretch Film Production Line streamlines bulk production. It reduces costs, improves efficiency, and delivers stable jumbo rolls that meet the demands of any packaging application. Ready to scale up your film production? Contact us today to discuss how we can tailor this line to your business!
