Model: XHD-65/90/65-1850
This machine is with jumbo roll winder and automatic paper cores unloading and loading system; it is one of the most popular models among our customers in Middle East countries. We had already sold more than 60 sets of jumbo roll stretch film machines to Turkey and its nearby countries. It can produce:
1) stretch film rolls with below specs
* 5 KGS/roll small hand use stretch film rolls.
* 10~18 KGS/roll machine use stretch film rolls.
* 50 KGS/roll jumbo rolls at 500 mm film width.
2) 8~10 microns 250~500 mm PE cling film jumbo rolls.
3) 30~35 microns 250 mm/300 mm/500 mm/750 mm silage film jumbo rolls (UV protective film rolls).
| Quantity: | |
|---|---|
XHD-65-90-65-1850
No. | Item | Description |
1) | Model: | XHD-65/90/65-1850 |
2) | Industrial Power Supply: | 3 phases industrial power supply |
3) | Total Installation Power: | 190 KW (for the machine only) |
4) | Main Raw Material: | LLDPE, LDPE (few) & MLLDPE |
5) | Thickness of Film: | 12-50 μm (the minimum thickness can be 8 microns) |
6) | Width of the Useful Film: | Maximum 1500 mm |
7) | Film Layer Structure: | CBA 3 layers or CABAC 5 layers |
8) | Designed Linear Speed: | 250 M/Min |
9) | Extrusion Output: | 150~280 kgs/h |
10) | Dimensions (L×W×H): | 12.5*6.2*4.6 M (for reference only) |
11) | Gross Weight: | 16000 Kg (for reference only) |

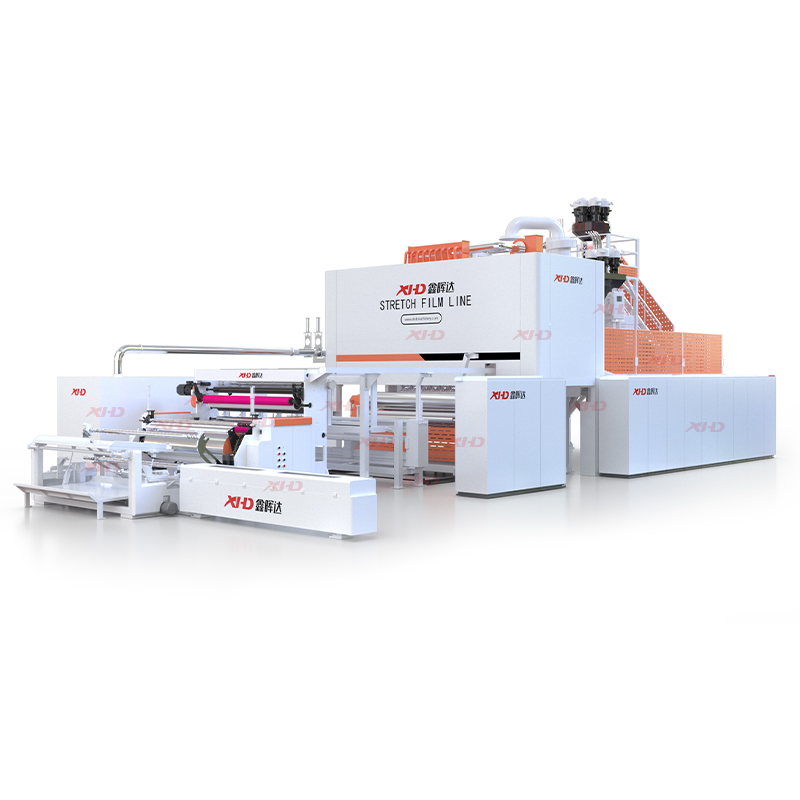

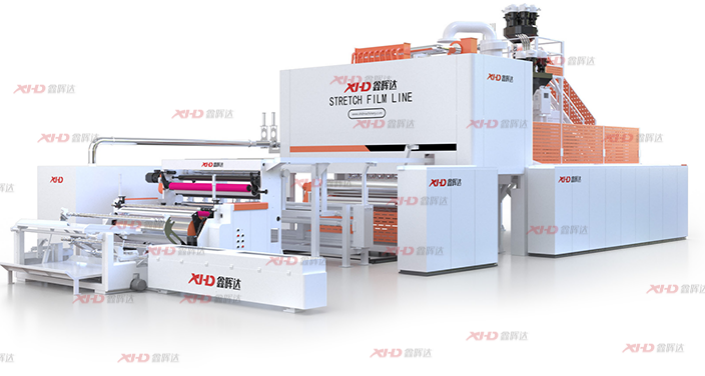

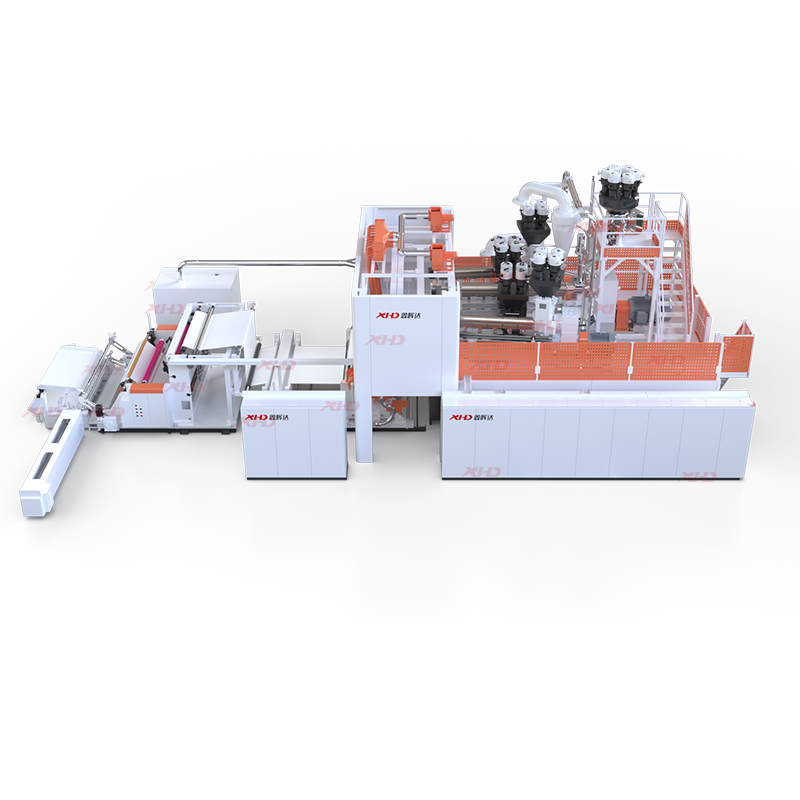

Struggling to meet high-demand stretch film production for industrial packaging or logistics? Our Automatic 1500mm Cast Jumbo Roll Stretch Film Machine is engineered to handle large-scale output with precision and speed. Designed for manufacturers and converters, this machine produces jumbo rolls of stretch film up to 1500mm wide, perfect for pallet wrapping, agricultural silage, and heavy-duty applications. Let’s explore how it can revolutionize your film production!
We built this machine with three core features to maximize your productivity:
High-speed cast extrusion for large volumes: The 1500mm-wide cast die and multi-layer co-extrusion system produce films at speeds up to 250 meters per minute. This allows you to create up to 320 kg/h of stretch film, ideal for meeting bulk orders efficiently.
Precision layer control for versatile films: Choose between 3-layer (CBA) or 5-layer (CABAC) configurations to combine LDPE, LLDPE, or recycled resins. This lets you engineer films with high stretch, UV resistance, or puncture protection—all in a single run.

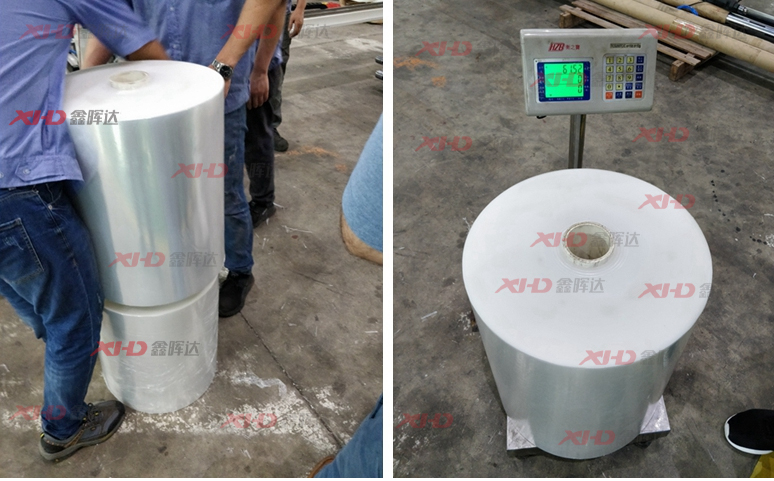

Automatic jumbo roll winding for seamless production: The integrated winder handles rolls up to 50 kg in weight and 500mm in width, with automatic paper core loading and finished roll unloading. No manual intervention needed—just set the parameters and let the machine work.
Where will this machine excel? Here are common applications:
Industrial packaging: Create jumbo rolls for pallet wrapping in warehouses or distribution centers. The 1500mm width covers more surface area per roll, reducing material waste and labor costs.
Agricultural silage: Produce UV-resistant films for wrapping feed bales. The multi-layer structure locks in moisture and extends silage shelf life.
Logistics and shipping: Make heavy-duty films for securing machinery or construction materials. The high tensile strength prevents tearing during transport.
We designed this machine for hassle-free integration into your workflow:
Intuitive touchscreen control: Adjust layer ratios, film thickness (8–50 microns), and winding tension with simple taps. Real-time diagnostics help you monitor performance and troubleshoot issues quickly.
Low-maintenance design: Self-lubricating bearings and a corrosion-resistant steel frame reduce downtime. Daily maintenance takes just 15 minutes, focusing on cleaning sensors and checking film alignment.
Energy-efficient operation: The optimized motor and cooling system consume 20% less energy than older models, lowering your production costs over time.
Here’s why manufacturers trust our solution:
Customizable for your needs: Need specific film properties or roll sizes? We offer optional upgrades like a hydraulic screen changer (for 2-second filter replacement) or a nitrogen-treated screw (for 100% recycled material compatibility).
Rigorous quality testing: Every machine undergoes 48-hour stress tests for layer consistency, stretch ratio, and mechanical stability. We ensure it meets your standards before delivery.
Global technical support: Our team provides 24/7 remote assistance and on-site training. We respond within 2 hours to minimize downtime.
Don’t settle for slow, manual processes. Our Automatic 1500mm Cast Jumbo Roll Stretch Film Machine delivers the speed, precision, and scalability you need to dominate the stretch film market. Perfect for industrial packaging, agriculture, and logistics, it ensures every roll is consistent and ready for use. Ready to upgrade your production line? Contact us today to discuss how this machine can fit into your operations!
