XHD-55-80-55-1250

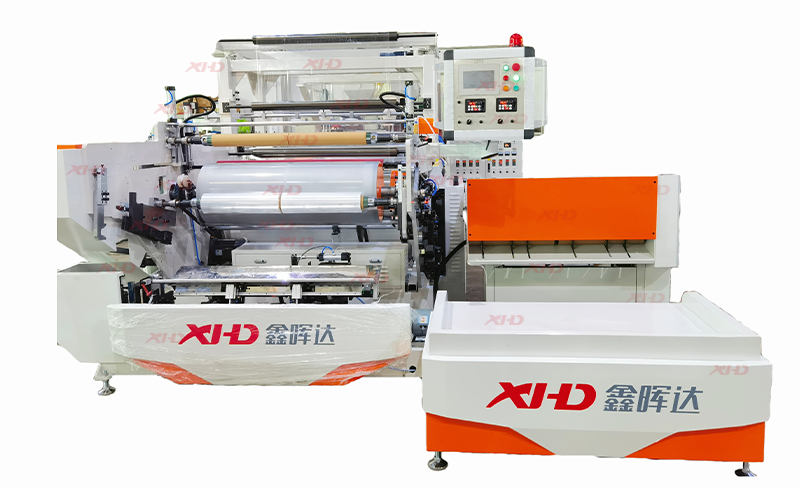

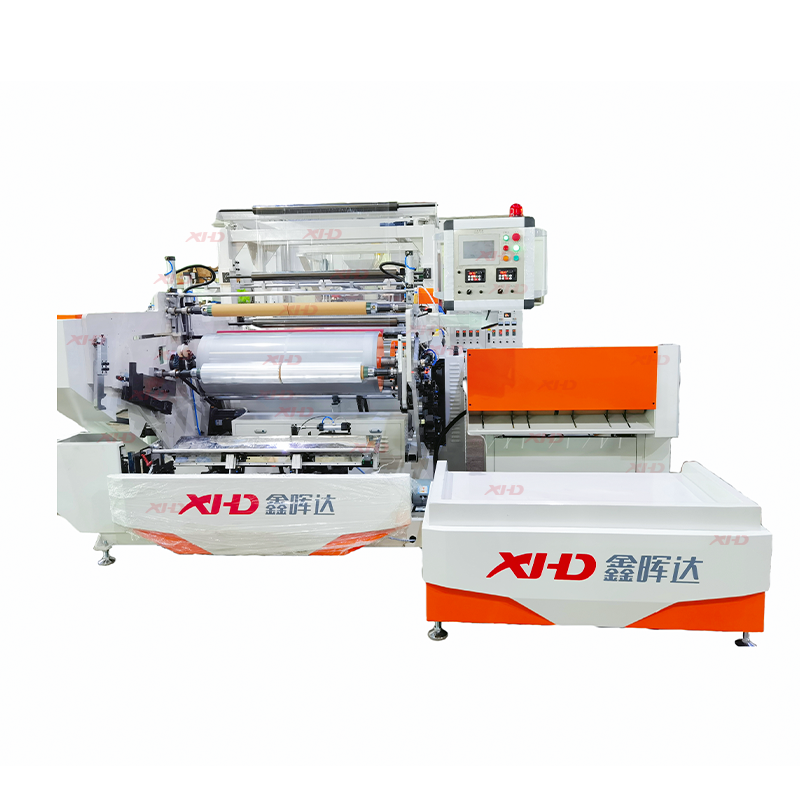

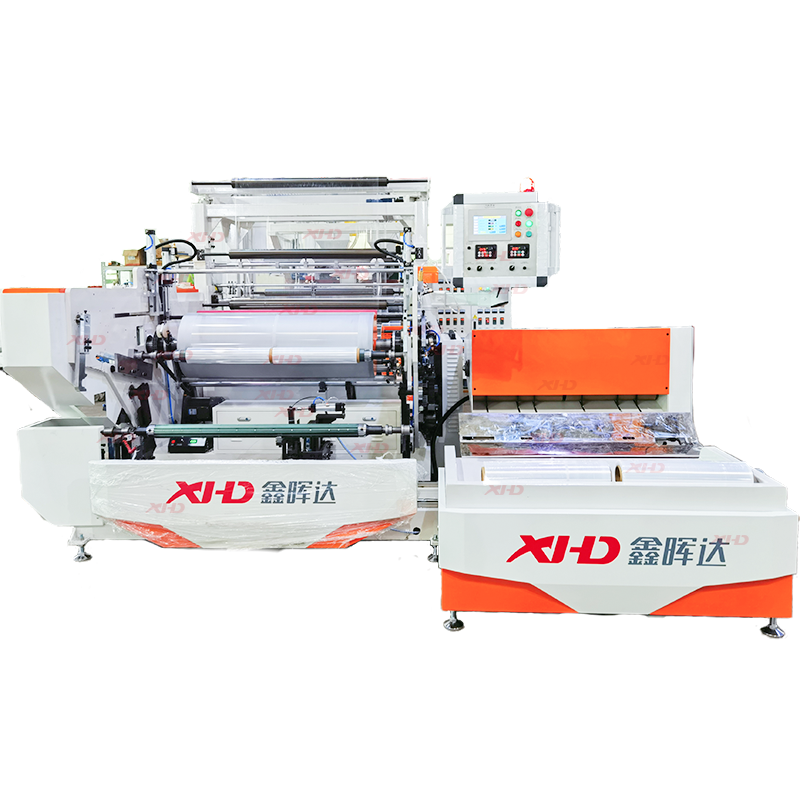

Need a reliable way to produce stretch film efficiently for your packaging needs? Our 1000mm Automatic Cast Stretch Film Line is designed to meet your demands. Whether you’re packaging pallets, protecting industrial goods, or creating retail wraps, this line combines automation, speed, and precision. Let’s explore how it can boost your production!
We built this line with three key features to simplify your film production:
1000mm width for versatile output: The 1000mm casting width lets you produce films in various thicknesses (12-50 microns) for different uses. Need narrow rolls for small packages or wide sheets for large pallets? This line adapts to your needs effortlessly.
Fully automatic operation for less labor: Smart sensors and PLC controls adjust temperature, speed, and film tension automatically. You don’t need constant manual supervision—just set your parameters and let the line work. This cuts labor costs and reduces human error.
High-speed performance without compromising quality: The advanced extruder runs at up to 150 meters per minute, ensuring fast output. Precision rollers and cooling systems keep the film uniform in thickness and stretchability. No more uneven surfaces or weak spots.
Where can you use this production line? Here are common scenarios:
Industrial pallet wrapping: Create strong stretch films to secure heavy machinery, metal parts, or building materials. The high tensile strength prevents tearing during transport, protecting your goods.
Retail and e-commerce packaging: Make lightweight, clear films for product displays or shipping boxes. The automatic line ensures consistent clarity and stretch, enhancing product appearance and reducing material waste.
Agricultural bundling: Produce films for wrapping hay bales or securing agricultural equipment. The durable material resists outdoor elements, keeping your supplies safe for longer.
We know you want a production line that’s user-friendly and reliable:
Intuitive control panel for all operators: The touchscreen interface shows real-time production data and lets you adjust settings with simple clicks. Even new workers can learn to use it in minutes.
Low-maintenance design for less downtime: Self-cleaning extruder screws and anti-corrosion coatings reduce the need for frequent maintenance. Regular checks only take 20 minutes a day, keeping your line running smoothly.
Here’s why manufacturers trust our solution:
1. Customizable for your needs: Need a specific stretch ratio or additive (like UV resistance)? We can adjust the extrusion system and raw material blend to match your requirements.
2. Strict quality testing: Every line undergoes 48-hour trials to ensure film thickness accuracy, stretch performance, and machine stability. We deliver only the most reliable equipment.
3. 24/7 technical support: Our team is ready to help with installation, parameter settings, or spare parts. We respond within 2 hours to keep your production on schedule.
Whether you’re a small packaging business or a large manufacturing plant, our 1000mm Automatic Cast Stretch Film Line simplifies film production. It saves time, reduces costs, and delivers high-quality stretch film for any application. Ready to upgrade your packaging process? Contact us today to see how we can tailor this line to your business!
No. | Item | Description |
1. | Model: | XHD-55/80/55-1250 |
2. | Industrial Power Supply: | 380V50HZ3Phase or customized |
3. | Total Installation Power: | 110 KW (for the machine only) |
4. | Main Raw Material: | LLDPE, LDPE (few) & MLLDPE |
5. | Thickness of Film: | 12-50 μm |
6. | Width of the Useful Film: | Maximum width 1000 mm |
7. | Film Layer Structure: | CBA three layers |
8. | Designed Linear Speed: | 150 M/min |
9. | Extrusion Output: | 100-200 Kg/H |
10. | Dimensions (L×W×H): | 8.5×5×3.4 M (for reference only) |
11. | Gross Weight: | 8500 Kg (for reference only) |
