| Quantity: | |
|---|---|
XHD-65-90-65-1850
No. | Item | Description |
1. | Model: | XHD-65/90/65-1850 |
2. | Industrial Power Supply: | 380V50HZ 3PHASE or customized |
3. | Total Installation Power: | 190 KW (for the machine only) |
4. | Main Raw Material: | LLDPE, LDPE (few) & MLLDPE |
5. | Thickness of Film: | 8-50 micron (the minimum thickness can be 8 microns) |
6. | Width of the Useful Film: | Maximum 1500 mm |
7. | Film Layer Structure: | CBA 3 layers or CABAC 5 layers |
8. | Designed Linear Speed: | 200 M/min |
9. | Extrusion Output: | 150-280 Kg/H |
10. | Dimensions (L×W×H): | 12.5*5.5*4.6 M (for reference only!) |
11. | Gross Weight: | 15,000 Kg (for reference only) |

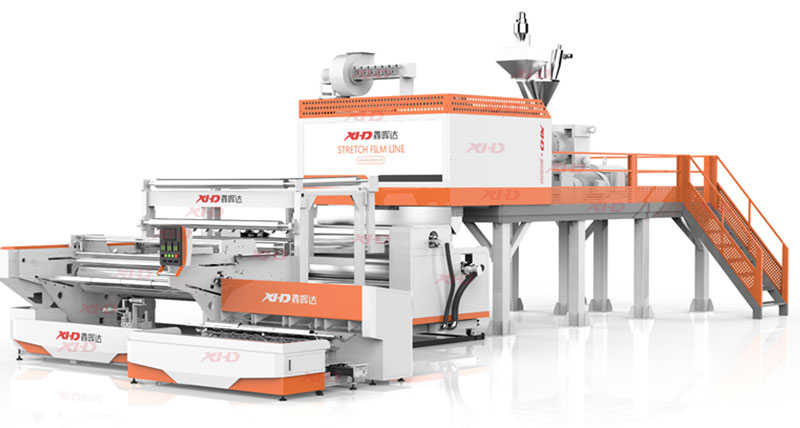

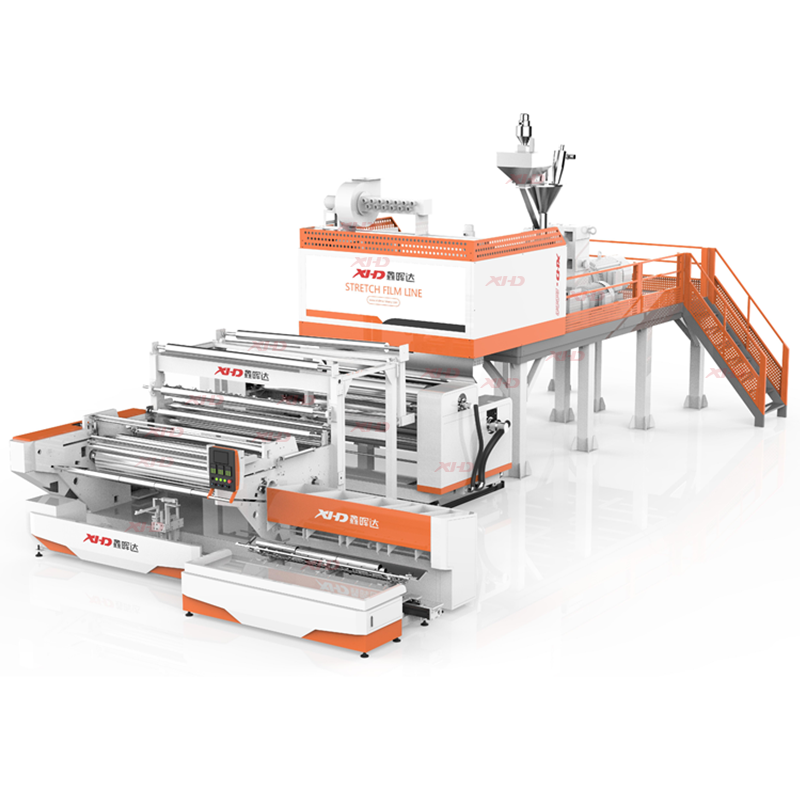

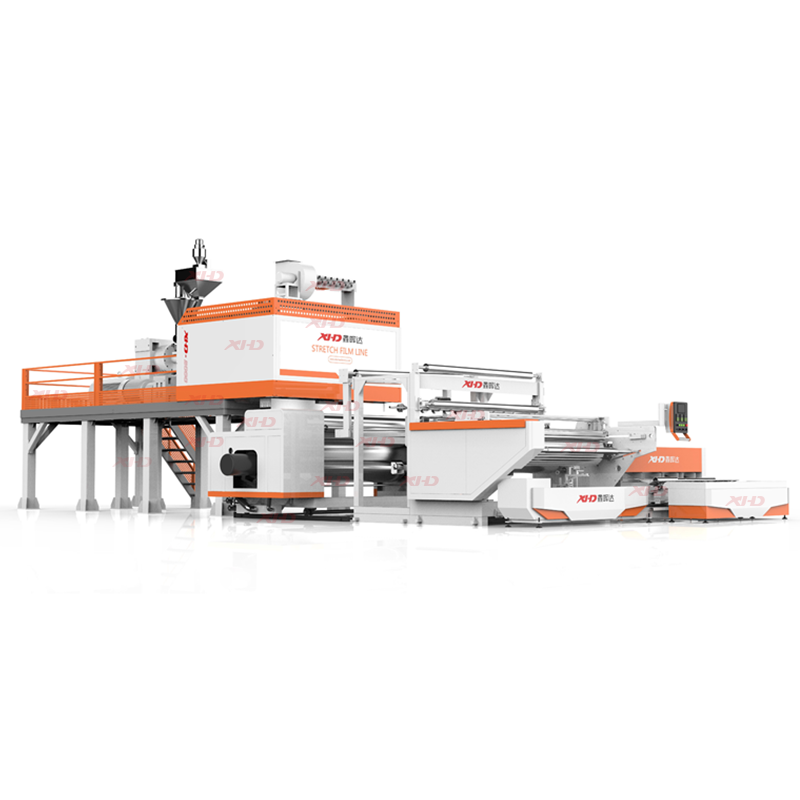

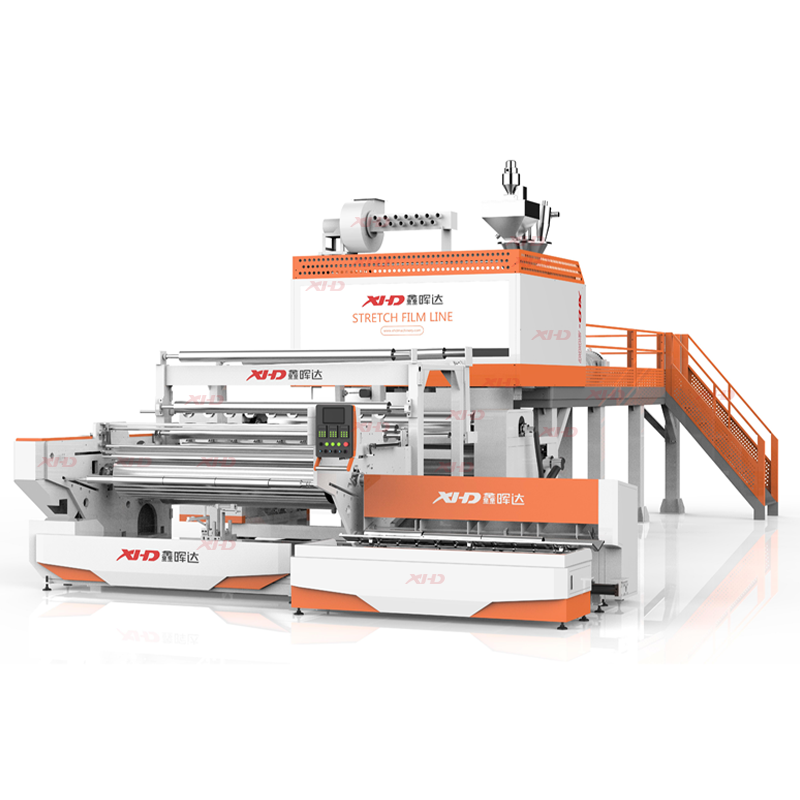

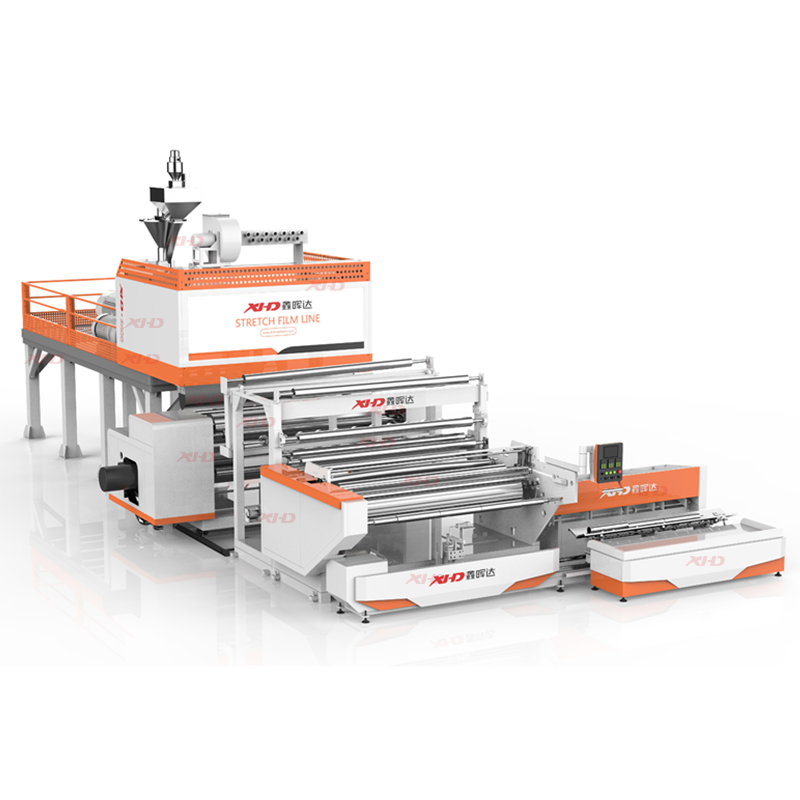

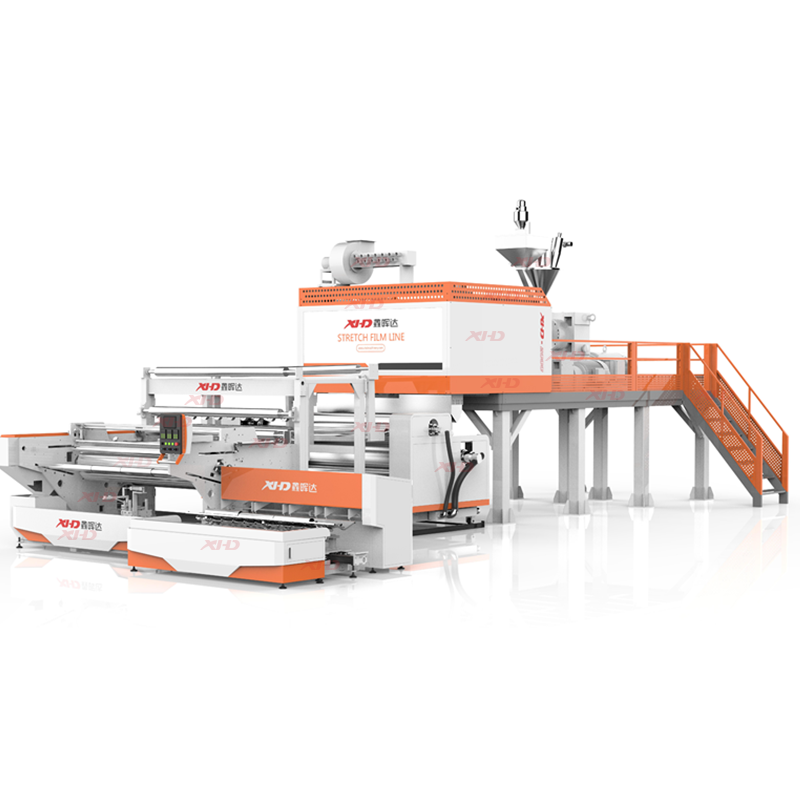

Need to produce stretch film faster for high-demand packaging orders? Our 1500mm Automatic Cast Stretch Film Extruder is here to help. Designed for large-scale manufacturers, this extruder combines a wide casting width, full automation, and reliable performance. Let’s explore how it can transform your production line!
We built this extruder with three key features to meet your business needs:
1500mm wide casting for high-volume output: The wide extrusion width lets you produce up to 30% more film per hour than standard models. Ideal for large pallets or bulk packaging, it reduces downtime between batches and boosts overall efficiency.
Fully automatic controls for easy operation: Smart sensors and a PLC system adjust temperature, speed, and film thickness in real time. No need for constant manual checks—just set your parameters and let the extruder work. This cuts labor costs and minimizes errors.
High-speed performance with consistent quality: The advanced motor runs at up to 180 meters per minute, while precision rollers ensure uniform film thickness (15-60 microns). The result? Stretch films with stable tensile strength and excellent elasticity, perfect for secure packaging.
Where can you use this extruder? Here are common scenarios:
Warehouse pallet wrapping: Create strong stretch films to secure heavy loads like furniture, electronics, or building materials. The high tensile strength prevents tears during transport, protecting your goods.
Retail packaging solutions: Produce clear, lightweight films for product displays or shrink wrapping. The extruder’s precision ensures consistent clarity and stretch, enhancing product appeal.
Agricultural bundling: Make durable films for wrapping hay bales or securing farming equipment. The weather-resistant material stands up to outdoor conditions, keeping your supplies safe.
We know you want a machine that’s user-friendly and reliable:
Intuitive touchscreen interface: The control panel shows real-time production data and lets you adjust settings with simple taps. Even new operators can learn to use it in minutes.
Low-maintenance design for less downtime: Self-lubricating bearings and corrosion-resistant components reduce the need for frequent repairs. Regular maintenance takes just 30 minutes daily, keeping your line running smoothly.
Here’s why businesses trust our solution:
1. Customizable for your needs: Need a specific stretch ratio or UV-resistant additives? We can adjust the extrusion system to match your requirements, ensuring films meet your exact standards.
2. Rigorous quality testing: Every extruder undergoes 72-hour trials for speed, temperature control, and film consistency. We deliver only machines that pass our strict quality checks.
3. 24/7 technical support: Our team is available around the clock for installation help, troubleshooting, or spare parts. We respond within 1 hour to keep your production on track.
Whether you’re packaging industrial goods, retail products, or agricultural supplies, our 1500mm Automatic Cast Stretch Film Extruder delivers the speed, capacity, and quality you need. It’s designed to handle high-volume production while keeping operations simple. Ready to maximize your film output? Contact us today to discuss how this extruder can fit into your business!
