Model: XHD-150-2900
L/D ratio of screw: 36:1
Width of finished film: 2400 mm
Thickness of film: 16g~35g
Maximum extrusion capacity: 600 KGS/Min
Designed linear speed: 250 M/Min
Machine dimensions: 24*6*5 meters
| Quantity: | |
|---|---|
XHD-90-150-90-2800

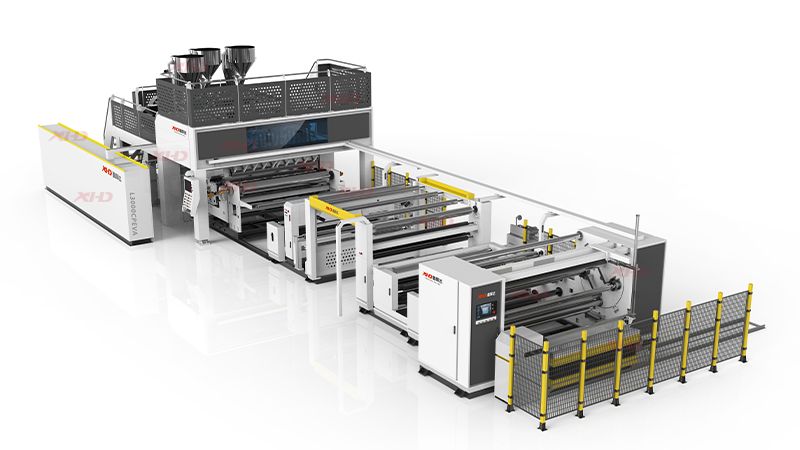

You need a production line that keeps up with demand while maintaining top quality. The 2400mm High Speed PE Breathable Film Production Line delivers exactly that. This advanced system combines cutting-edge technology with user-friendly operation to produce high-performance breathable films for multiple industries.
With a maximum line speed of 250 m/min and output capacity of 0.35-0.55 tons per hour, this production line transforms PE granules into superior breathable films with precise control. The unique microporous structure created through specialized stretching technology ensures optimal breathability while maintaining waterproof properties—critical for hygiene and medical applications.
You'll achieve industry-leading productivity with this line's impressive speed capabilities. The system reaches mechanical speeds up to 250 m/min with stable running speeds of 150 m/min, significantly increasing your output compared to standard production lines. This high-speed performance doesn't compromise quality, thanks to advanced control systems that maintain consistent film properties even at maximum throughput.
The production line features a special screw design with high wear resistance and superior plasticization. This ensures efficient melting and mixing of PE materials with calcium carbonate additives. The coat hanger die combined with a static mixer eliminates material spots, while the chilled casting design provides excellent dispersion and uniform
plasticization. You'll notice the difference in film quality from your first production run.
Operate with confidence using the integrated PLC control system and touch screen interface. All critical parameters—including temperature, pressure, and speed—are monitored and adjusted in real-time. The X-ray automatic thickness gauge provides instant feedback, allowing the automatic die head to make precise adjustments. This level of control ensures consistent film thickness (12-50 μm) across the entire 2400mm width.
Reduce waste and material costs with the on-line extrusion and recycling system for edge trim. This closed-loop system automatically collects and processes excess material, feeding it back into production. You'll minimize waste while maintaining material properties, improving your bottom line and environmental footprint simultaneously.
The patented full-automatic winder design eliminates manual handling, saving labor costs and reducing errors. The precise tension control system ensures uniform winding, resulting in neat, consistent rolls ready for immediate use or further processing. Quick roll changeovers minimize downtime between production runs.
Parameter | Value |
Film Width | 2400 mm |
Film Thickness | 12-50 μm |
Line Speed | Up to 250 m/min |
Production Speed | 150 m/min |
Output Capacity | 0.35-0.55 tons/hour |
Raw Material | PE breathable granules |
Power Consumption | 0.4 kWh/kg |
Total Power | 300 kW |
Overall Dimensions | 18 × 8 × 5 m |
Net Weight | 35 tons |
Certification | CE, ISO |
You'll produce film ideal for baby diapers, sanitary napkins, and adult incontinence products. The unique microporous structure allows water vapor to escape while preventing liquid leakage, keeping skin dry and comfortable. The film's softness and purity meet the highest standards for personal care products.
Manufacture critical medical supplies with confidence. The production line creates film suitable for surgical gowns, disposable bed sheets, and medical packaging. The material meets "three resistances and one resistance" requirements—water repellent, blood repellent, alcohol repellent, and antistatic—essential for medical protective equipment.
Expand into construction applications with breathable waterproof membranes and anti-dew films. The film's durability and weather resistance make it suitable for underlayment, roofing, and wall applications where moisture management is critical.
Produce high-quality films for raincoats, gloves, shower curtains, and other waterproof breathable products. The line's versatility allows you to adjust formulations and thickness to meet specific product requirements.
Join industry leaders like Imaflex who have expanded their production capabilities with similar technology. Our 2400mm line helped this major flexible packaging manufacturer increase capacity and develop new products to serve growing customer needs.
International customers in Nigeria, Vietnam, South Africa, and Dubai trust our equipment for their production needs. This global footprint demonstrates our commitment to quality and service, no matter where your facility is located.
You're not just purchasing equipment—you're gaining a partner. We provide complete
technical support, including installation, operator training, and a one-year warranty. Our remote diagnosis function ensures quick resolution of any issues, minimizing downtime.
Tailor the production line to your specific needs with optional online slitting and printing units. These additions enable automated flow production, further reducing labor costs and increasing efficiency.
Ready to transform your production capabilities? Contact our team today to discuss how the 2400mm High Speed PE Breathable Film Production Line can meet your manufacturing goals. Request a quote or schedule a virtual demonstration to see the technology in action.
