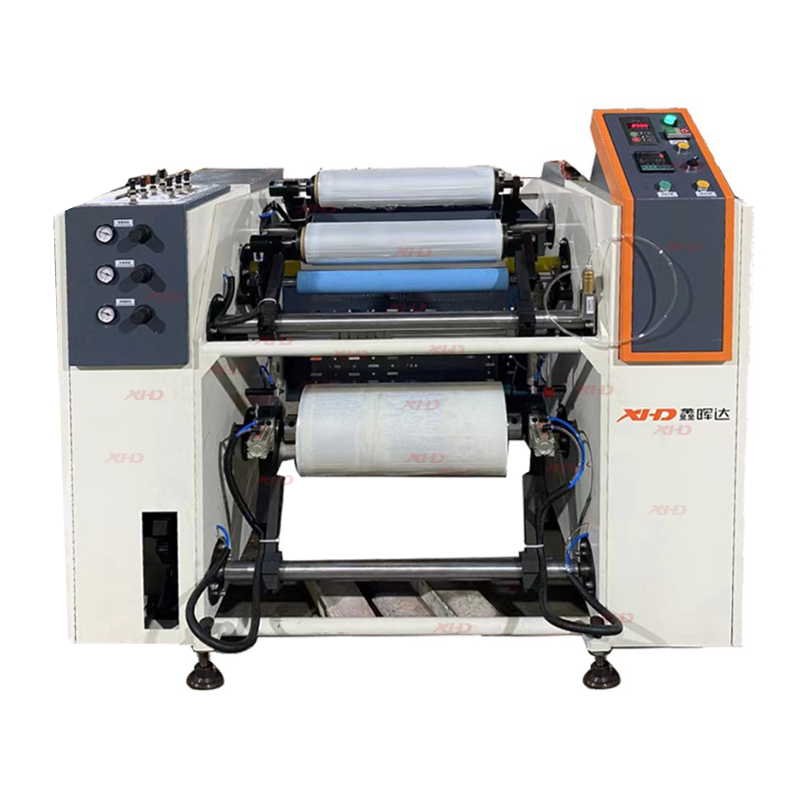

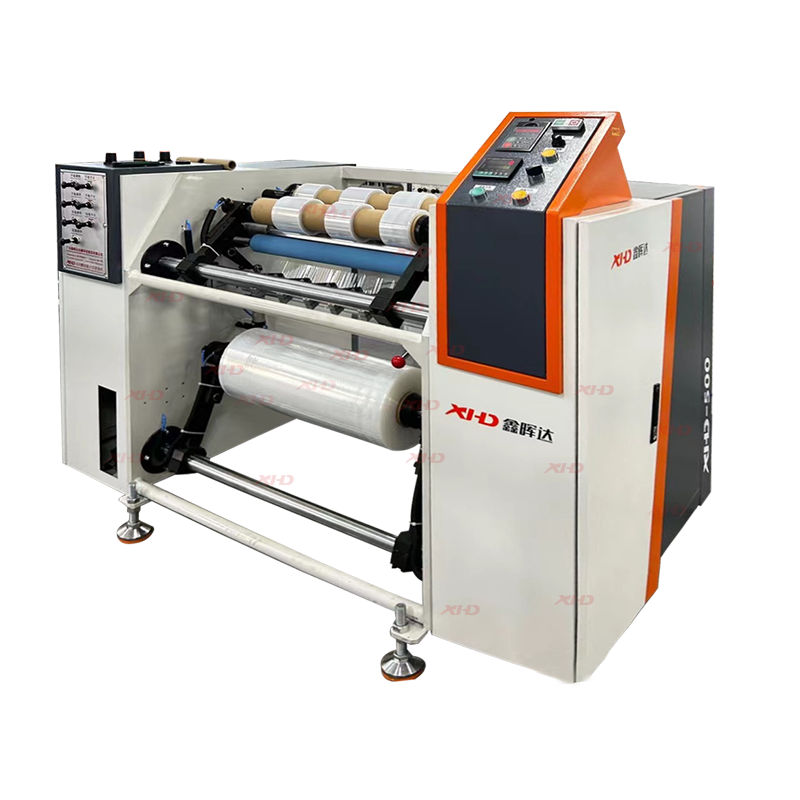

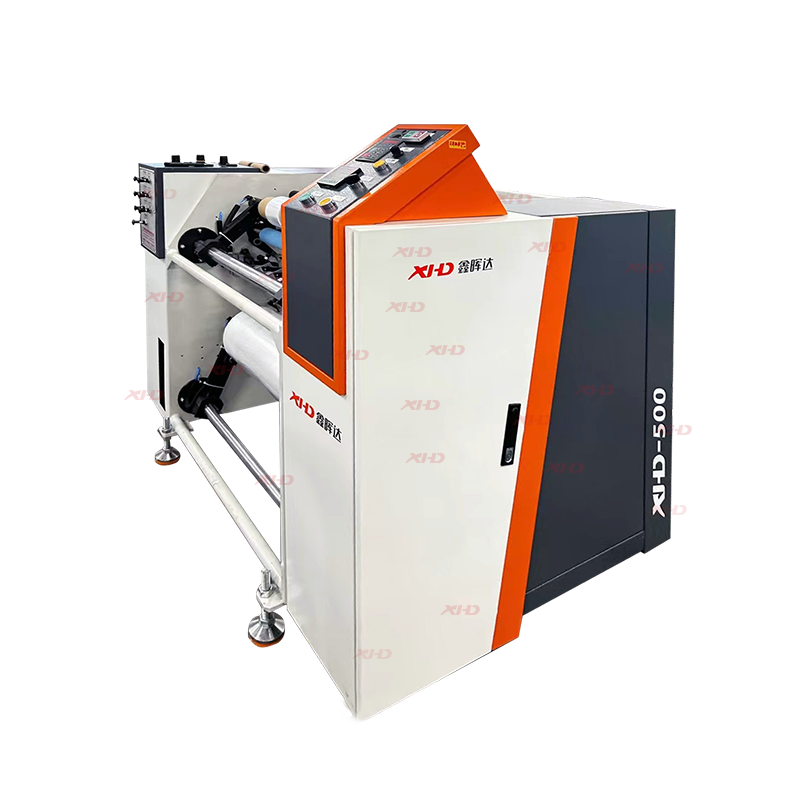

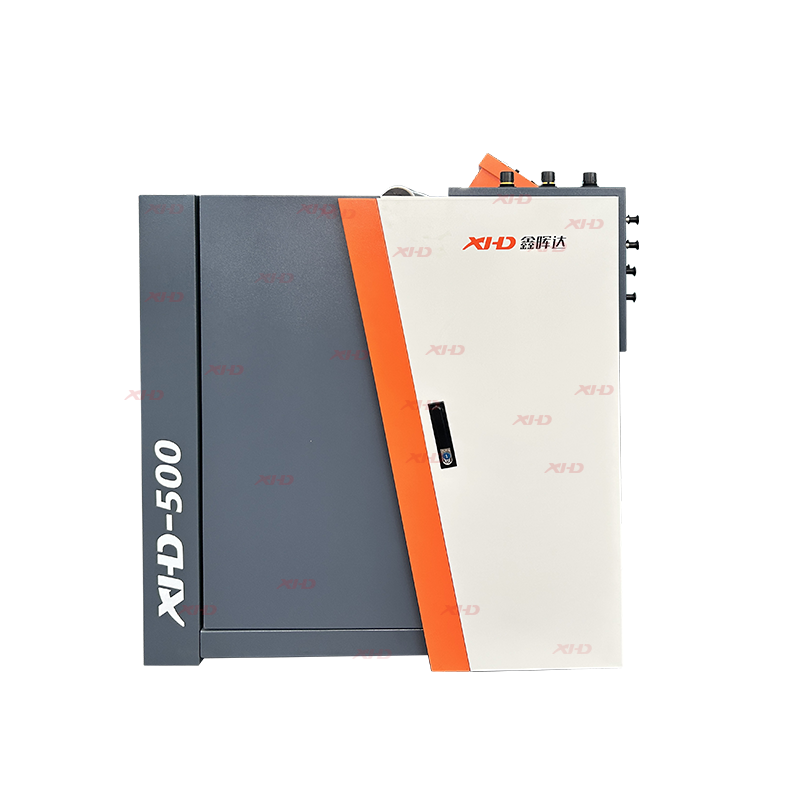

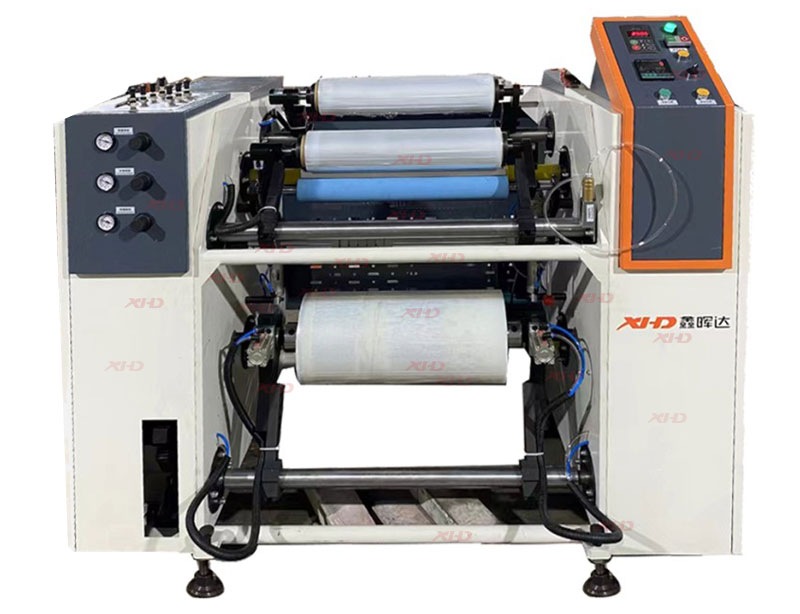

Model: XHD-500-S
Functions: 1) slitting; 2) slitting and rewinding.

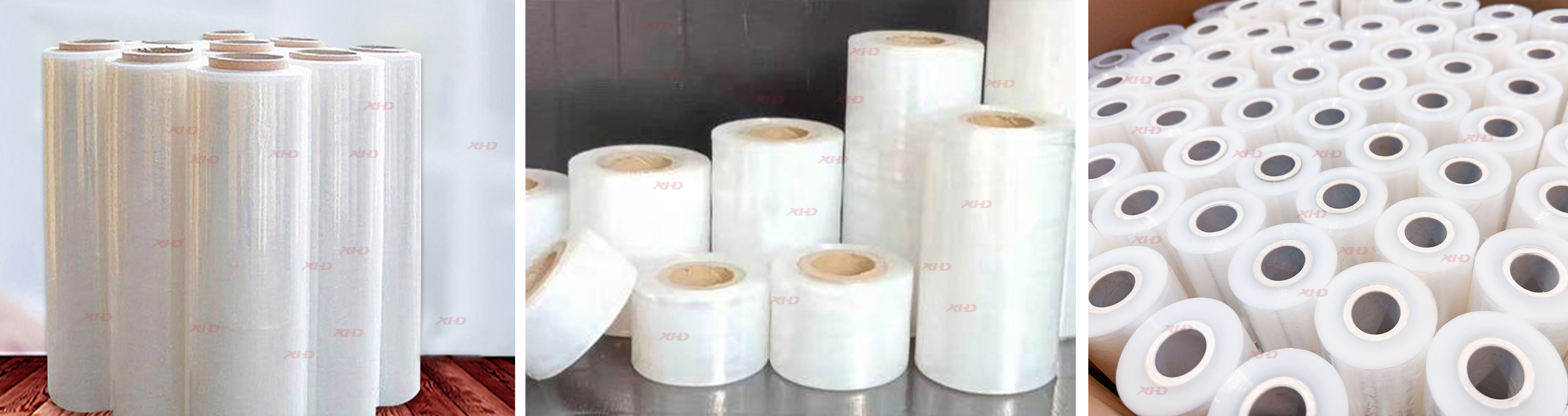

Suitable for rewinding the jumbo rolls into small hand use stretch film rolls.
| Quantity: | |
|---|---|
XHD-500-S
Item | Description |
Power Supply | 3 phases industrial power supply |
Main motor power | 1.5 KW |
Designed linear speed | 600 M/min |
Paper core loading mode | By Manual |
Max diameter of parent roll | 400 mm |
Max width of parent roll | 500 mm |
Inner diameter of parent roll | 3" |
Stretch film cutting mode | By Knife |
Width of sub-roll | 50 mm-500 mm |
Max diameter of sub-roll | 400 mm |
Inner diameter of sub-roll | 1”, 1.5”, 2" & 3" |
Machine dimensions (L×W×H) | 1.4×1.0×1.1 M |
Net weight | 560 Kg |
Looking for a machine that can both slit and rewind stretch films quickly and accurately? Our High-Speed Stretch Film Slitter & Rewinder is the solution. Designed for large-scale film producers, this machine combines two functions into one, saving time and space. Let’s explore how it can optimize your production line!
We built this machine with three key advantages for efficient film processing:
High-speed slitting up to 500m/min: The sharp, adjustable blades cut large film rolls into multiple narrow widths (50mm to 1000mm) with precision. No more uneven cuts or film tears—every slit is clean and straight.
Automatic rewinding for consistent rolls: The dual winders create uniform rolls with precise tension control. They handle both thin retail films and thick industrial films, ensuring smooth unwinding in any packaging machine.
Space-saving dual function: Combines slitting and rewinding into one machine, reducing floor space by 50% compared to separate systems. Perfect for facilities with limited space or high production demands.
Where will this machine make an impact? Here are common uses:
Film converting factories: Slit jumbo rolls into smaller rolls for wholesale distribution. The high speed keeps up with large orders, while the precision ensures customer satisfaction.
Industrial packaging companies: Process stretch films for pallet wrapping machines. The machine’s ability to handle thick films makes it ideal for heavy-duty industrial applications.
Retail film suppliers: Create custom-width films for e-commerce packaging or retail displays. The quick changeover between widths lets you adapt to market demands efficiently.
We know large-scale production needs reliable, efficient equipment:
Digital width adjustment: Enter your desired film width on the touchscreen, and the machine automatically adjusts the slitting blades. No manual measurements—just precise, automated settings.
Self-diagnostic system for quick fixes: The machine detects blade wear, tension issues, or alignment problems and alerts you via the screen. This reduces downtime and keeps repairs simple.
Here’s why manufacturers rely on our solution:
1. Customizable for your blade and winding needs: Choose between razor blades or shear blades based on your film type. We also offer different winder sizes to match your target roll diameters.
2. Stringent quality checks: Every machine is tested with actual film rolls to ensure slit accuracy (±0.5mm) and roll uniformity. We deliver only equipment that meets the highest industrial standards.
3. 24/7 emergency support: Our team understands that downtime costs money. We offer rapid response for blade replacements, software updates, or mechanical issues, keeping your production line running.
Don’t waste time with separate slitting and rewinding machines. Our High-Speed Stretch Film Slitter & Rewinder combines both functions into one high-performance system, saving space, time, and costs. Ready to scale up your film production with precision and speed? Contact us today to discuss how this machine can elevate your operations!
