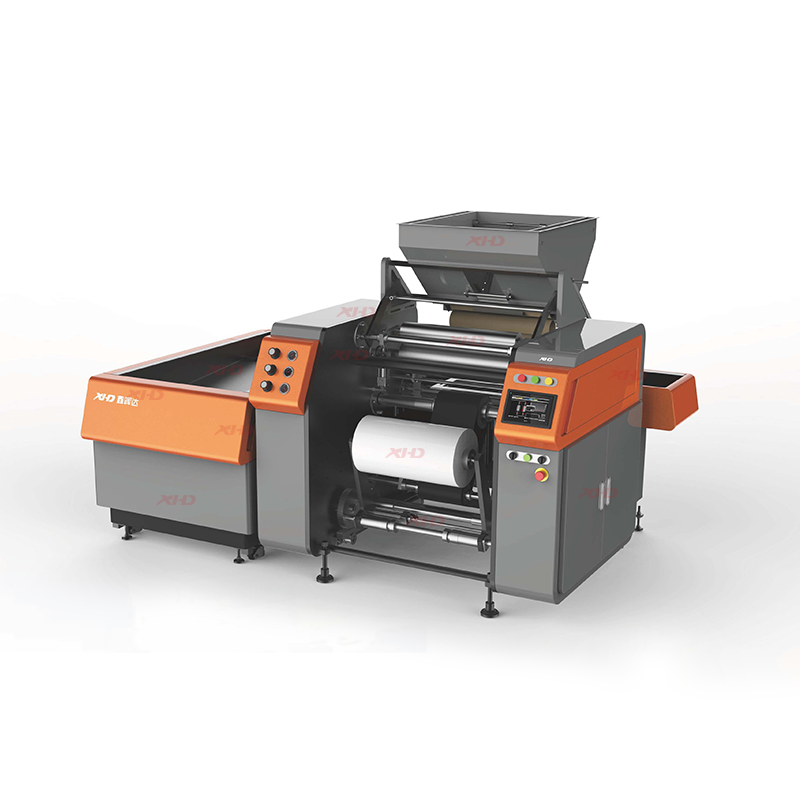

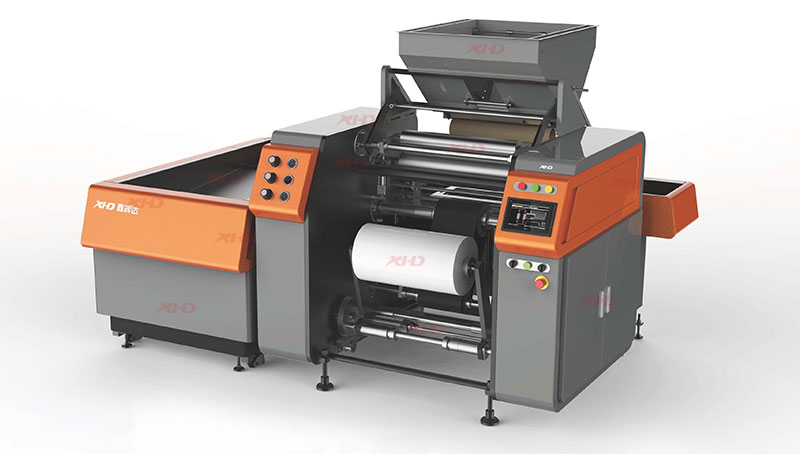

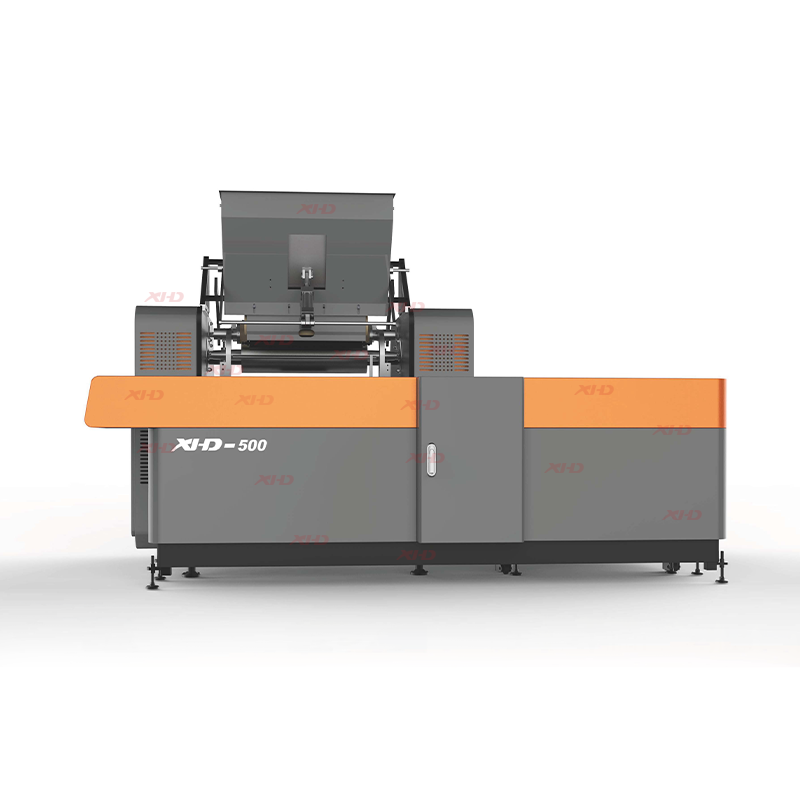

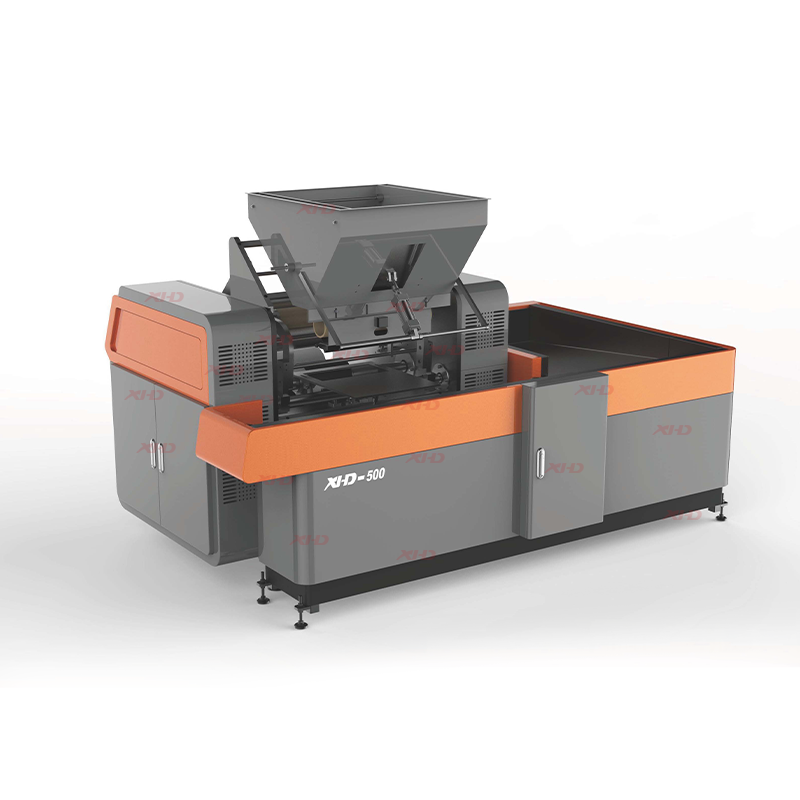

Model: XHD-500-A
Suitable for rewinding the jumbo rolls into small hand use stretch film rolls.
Designed speed: 1200 M/min
Rewinding capacity: 8.0-9.5 tons per 24 hours.
| Quantity: | |
|---|---|
XHD-500-A
No. | Item | Description |
1) | Voltage/Frequency/Phase | 220 V/60 HZ/3 Phases |
2) | Main motor power | 4 KW |
3) | Designed linear speed | 1200 M/min |
4) | Paper core loading mode | Automatic |
5) | Max diameter of parent roll | 500 mm |
6) | Max width of parent roll | 500 mm |
7) | Inner diameter of parent roll | 3" |
8) | Stretch film cutting mode | By resistance wire |
9) | Width of sub-roll | 500 mm |
10) | Max weight of sub-roll | 10 KGS |
11) | Inner diameter of sub-roll | 1.5”, 2” and 3" |
12) | Machine dimensions (L×W×H) | 2.6×1.8×1.4 M |
13) | Net weight | 980 KGS |
Need a reliable way to rewind stretch films for your packaging business? Our Fully Automatic Stretch Film Rewinder is designed to handle all your roll processing needs. Whether you produce industrial stretch film, agricultural silage film, or retail wrap, this machine delivers efficiency and precision. Let’s explore its key benefits!
We engineered this rewinder with three core features for seamless operation:
Fully automated tension control: The machine uses smart sensors to adjust film tension in real time, preventing over-stretching or slack. This ensures uniform roll density, critical for smooth unwinding in packaging machines.
High-speed rewinding for large volumes: It processes up to 400 meters per minute, making it ideal for high-volume production lines. The dual-position winder switches rolls automatically, reducing downtime between batches.
Versatile for all stretch film types: Works with LDPE, LLDPE, and recycled stretch films, from thin retail wraps (12 microns) to thick industrial films (80 microns). No need for separate machines—this one handles them all.
Where will this rewinder shine? Here are common applications:
Industrial packaging plants: Rewind heavy-duty stretch films for pallet wrapping. The automatic core alignment ensures rolls fit perfectly in automatic wrapping machines.
Agricultural film producers: Process silage films into large, stable rolls for farm use. The machine’s durability stands up to daily use in rural environments.
Retail film converters: Split jumbo rolls into smaller, customer-ready sizes. The precise width adjustment (50mm to 1500mm) lets you meet diverse market demands.
We focus on making your workflow simple:
One-touch setup for quick changes: Save your most used roll settings (width, diameter, tension) as presets. Switch between production runs with just a few taps, reducing setup time by 30%.
Low-maintenance components: The self-lubricating gearbox and corrosion-resistant rollers require minimal upkeep. A monthly maintenance check is enough to keep the rewinder in top condition.
Here’s why it’s a top choice for manufacturers:
1. Customizable for your film specs: Need specific roll weights or core diameters? We work with you to adjust the rewinder’s settings and mechanical components for your exact needs.
2. Rigorous performance testing: Every machine is tested with real stretch films for 72 hours to ensure roll consistency and machine reliability. We don’t ship until it meets your standards.
3. Dedicated support team: Our experts provide on-site installation, operator training, and 24/7 remote troubleshooting. We’re committed to ensuring your rewinder runs smoothly from day one.
Streamline your stretch film processing with a machine that combines automation, speed, and versatility. Our Fully Automatic Stretch Film Rewinder eliminates manual errors, boosts output, and delivers high-quality rolls for any application. Ready to enhance your film production? Contact us today to discuss how this rewinder can transform your business!
