The world around us is filled with plastic products, from the packaging that keeps our food fresh to the pipes that deliver clean water to our homes. Many of these everyday items are created through a manufacturing process called extrusion, and at the heart of this process is the extrusion machine.
Understanding how these machines work is key to appreciating the engineering behind countless products we use daily. This guide will explain what an extrusion machine is, how the extrusion process works, the different types of machines available, and their common applications across various industries. Whether you're a student, an aspiring engineer, or just curious about manufacturing, this post will provide a clear overview of this essential technology.
At its core, extrusion is a process where a raw material is pushed through a die to create an object with a specific, continuous cross-sectional shape. Think of squeezing toothpaste from a tube—the opening of the tube is the die, and the toothpaste comes out in a long, consistent shape.
An extrusion machine automates and refines this concept for industrial manufacturing. The process begins with raw plastic material, usually in the form of small pellets or granules. This material is fed into the machine, where it is melted, mixed, and forced through a specially shaped die to form a continuous profile. This profile is then cooled and cut to the desired length. The final product could be anything from a simple pipe or tube to a complex window frame or a thin plastic film.
The primary function of an extrusion machine is to precisely control temperature, pressure, and speed to ensure the final product meets exact specifications for quality and consistency.
While designs can vary, most extrusion machines share a set of fundamental components that work together to transform raw plastic into a finished product.
The process starts at the hopper, a large, funnel-shaped container that holds the raw plastic pellets. From the hopper, the material is fed into the barrel at a controlled rate. The consistency of this feed is crucial for ensuring the final product has a uniform quality.
The barrel is a long, cylindrical chamber that houses a large rotating screw. This is where the magic happens. As the screw rotates, it performs three critical functions:
1.Transporting: It moves the plastic pellets from the feed throat down the length of the barrel.
2.Melting: The barrel is surrounded by heating elements that melt the plastic. The friction and pressure generated by the rotating screw also contribute significant heat, a process known as shear heating.
3.Mixing: The screw homogenizes the molten plastic, ensuring it has a consistent temperature and composition. Additives and colorants can also be mixed in at this stage.
The die is a specially designed tool that gives the extruded material its final shape. It’s attached to the end of the barrel, and the molten plastic is forced through it under high pressure. Dies are custom-made to create specific profiles, ranging from simple round shapes for pipes to highly complex shapes for custom parts. For manufacturing plastic films, a cast film extrusion machine uses a flat-slotted die to produce a thin, wide sheet of material.
Once the molten plastic exits the die, it needs to be cooled and solidified while maintaining its shape. This is typically done by passing it through a water bath or directing cool air onto it. Sizing tools, such as vacuum calibrators, are often used to help hold the profile to its exact dimensions as it cools.
A puller, also known as a haul-off unit, grips the cooled product and pulls it away from the die at a constant speed. The speed of the puller is carefully synchronized with the extrusion rate to control the thickness and dimensions of the product. Finally, a cutter—such as a saw or a blade—cuts the continuous profile into predetermined lengths.
Extrusion machines are broadly categorized based on their screw design, which directly impacts their processing capabilities.
This is the most common and simplest type of extrusion machine. It features a single rotating screw within the barrel. Single-screw extruders are reliable, cost-effective, and ideal for processing a wide range of common polymers. They are widely used for producing pipes, tubing, sheets, and profiles.
As the name suggests, these machines use two intermeshing screws that rotate within the barrel. Twin-screw extruders offer superior mixing and compounding capabilities, making them perfect for applications that require blending different polymers, adding fillers, or incorporating colorants. They are often used to produce high-performance plastics and specialized compounds.
There are two main types of twin-screw extruders:
· Co-rotating: Both screws turn in the same direction, providing excellent mixing action.
· Counter-rotating: The screws turn in opposite directions, creating high shear forces suitable for processing heat-sensitive materials like PVC.

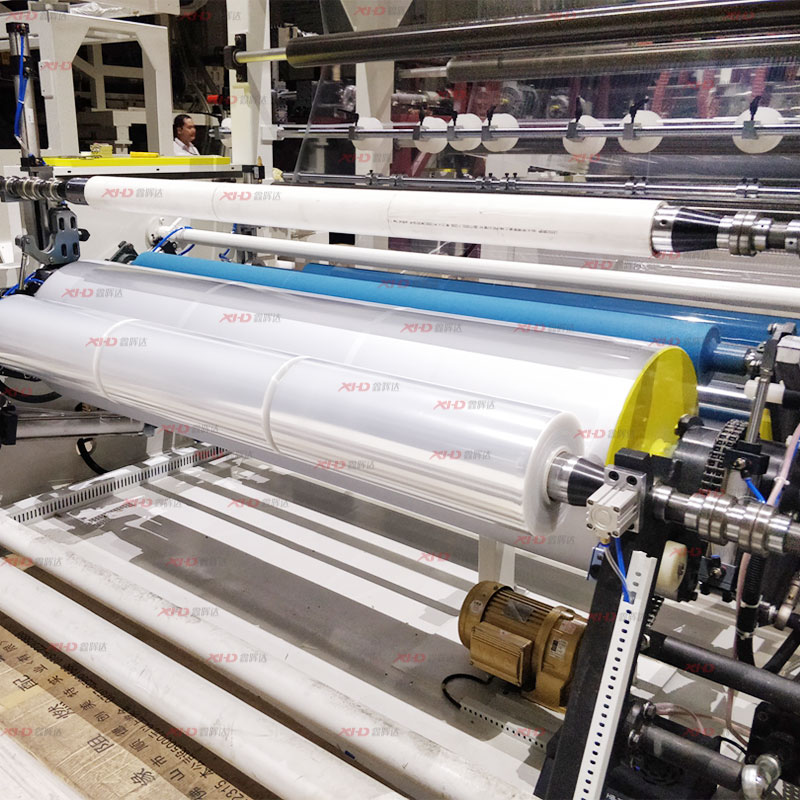

A cast film extrusion machine is a specialized type of extruder designed to produce high-quality, flat plastic films. In this process, molten polymer is extruded through a flat die onto a chilled, high-polished roller. The rapid cooling solidifies the plastic into a sheet with excellent clarity, uniform thickness, and a smooth surface. These machines are essential for manufacturing packaging films, plastic wrap, and other flexible sheeting products.
Extrusion technology is incredibly versatile, with applications spanning numerous industries. Here are some of the most common products made using extrusion machines:
· Pipes and Tubing: From PVC water pipes to flexible medical tubing.
· Profiles: Window frames, door frames, seals, and decorative trim.
· Sheet and Film: Plastic sheeting for packaging, food wrap, and agricultural films. A cast film extrusion machine is specifically used for many of these applications.
· Wire and Cable Coating: Insulating coatings for electrical wires and cables.
· Filaments: Production of filaments for 3D printing.
· Compounding: Mixing plastic resins with additives to create custom material blends.
Extrusion machines are fundamental to modern manufacturing, enabling the efficient, high-volume production of countless plastic products that shape our daily lives. From the simple design of a single-screw extruder to the complex capabilities of a twin-screw system, these machines are engineered for precision and reliability. Specialized equipment like the cast film extrusion machine further expands the possibilities, allowing for the creation of high-quality films essential for packaging and beyond.
As technology advances and the demand for sustainable and high-performance materials grows, the field of extrusion will continue to evolve. Innovations in machine design, process control, and material science will ensure that the extrusion machine remains an indispensable tool for manufacturers for years to come.
