A stretch film rewinder is a machine that takes extruded plastic film from a parent roll and rewinds it into smaller, finished rolls—either hand rolls for manual wrapping or machine rolls for automated pallet wrapping equipment. Choosing the right stretch film rewinder depends on your production volume, roll diameter requirements, film material, and level of automation needed.
XHD Machinery, founded in 2006, manufactures a range of plastic film rewinders engineered for both small film production workshops and large-scale manufacturing facilities.
A stretch film rewinder unwinds a wide parent roll of plastic film and rewinds it into narrower or smaller rolls at controlled tension. The machine ensures consistent roll geometry, prevents film wrinkles, and maintains uniform tightness across every finished roll. Stretch film rewinders handle materials including polyethylene (PE), polypropylene (PP), and PVC.
Without a properly matched rewinder, finished rolls may be uneven, loosely wound, or structurally weak—causing downstream problems in storage, transit, and end-use wrapping performance.
Before selecting a stretch film rewinder, it is important to understand the distinction between the two primary roll types:
Hand rolls are lighter, narrower rolls (typically 500 mm wide, 17–23 microns thick) designed for manual application. Operators wrap them around pallets by hand. These rolls typically weigh 1–3 kg and have a 76 mm core.
Machine rolls are wider, heavier rolls (typically 500 mm or wider, 15–25 microns thick) intended for use in rotary arm or turntable pallet wrapping machines. These rolls can weigh 15–30 kg and require higher tension consistency.
Key implication: A stretch film rewinder configured for hand rolls may not have the torque, core chuck sizing, or tension control capacity to reliably produce machine rolls. Confirm your target roll specifications before evaluating equipment.
Choosing the right automatic stretch film rewinder involves evaluating six primary criteria:
Confirm whether the rewinder supports your required core diameter, roll width, and maximum roll weight. Some machines are purpose-built for hand roll slitting and rewinding, while others—such as XHD's Fully Automatic Stretch Film Rewinder—are designed for higher-capacity machine roll production.
Hand roll rewinders: prioritize compact footprint, fast roll changeover, and narrow slit widths
Machine roll rewinders: prioritize high torque, heavy-duty chucks, and precise tension control across larger roll diameters
Stretch film rewinders range from semi-automatic to fully automatic configurations:
Semi-automatic rewinders require operator intervention for core loading and roll unloading. These suit lower-volume operations or facilities where labor costs are low.
Fully automatic stretch film rewinders handle core insertion, film cutting, and roll transfer without manual steps. XHD's automatic stretch film rewinder is engineered for continuous, high-speed operation with minimal downtime between roll changes.
Automatic stretch film rewinders are better suited for manufacturers producing large volumes consistently, while semi-automatic models work well for smaller workshops or operations requiring frequent format changes.
Even tension throughout the rewinding process is the single most important factor in roll quality. Poor tension control causes:
Telescoping (rolls that splay out at the edges)
Film wrinkles and surface defects
Inconsistent roll hardness
Look for rewinders with closed-loop tension control systems and dancer roll mechanisms that automatically compensate for changes in roll diameter as winding progresses. XHD's plastic film rewinders feature advanced tension control systems specifically designed to prevent film wrinkles and damage.
Rewinding speed is typically measured in meters per minute (m/min). Match the rewinder's speed capacity to your upstream film extrusion line output to avoid bottlenecks.
Entry-level rewinders: 100–200 m/min
Mid-range automatic rewinders: 200–400 m/min
High-speed production lines: 400+ m/min
Mismatched speeds between your stretch film machine and rewinder create queuing, film sag, or unnecessary tension variation.

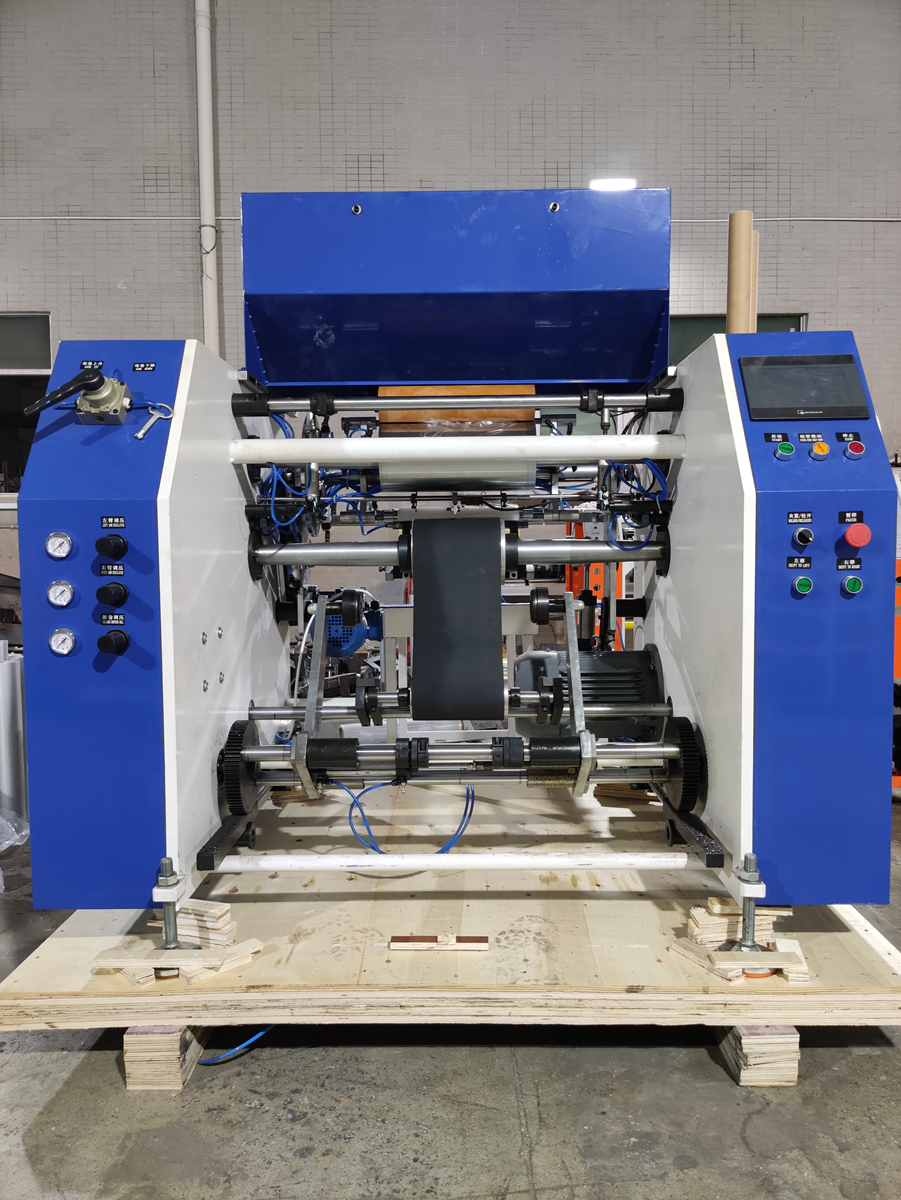

If your production line extrudes a wide parent roll (e.g., 1,000 mm, 1,500 mm, or 2,000 mm), your rewinder will need integrated slitting blades to divide the parent roll into finished-width rolls simultaneously. XHD's High-Speed Stretch Film Slitter & Rewinder combines slitting and rewinding in a single pass, improving throughput and reducing handling.
Confirm the number of slitting lanes, blade type (razor, score, or shear), and minimum/maximum slit width the machine supports.
Stretch film rewinders must be compatible with the specific film materials in your production line. Common materials include:
Linear low-density polyethylene (LLDPE) — the most common stretch film material; requires smooth roller surfaces and moderate tension

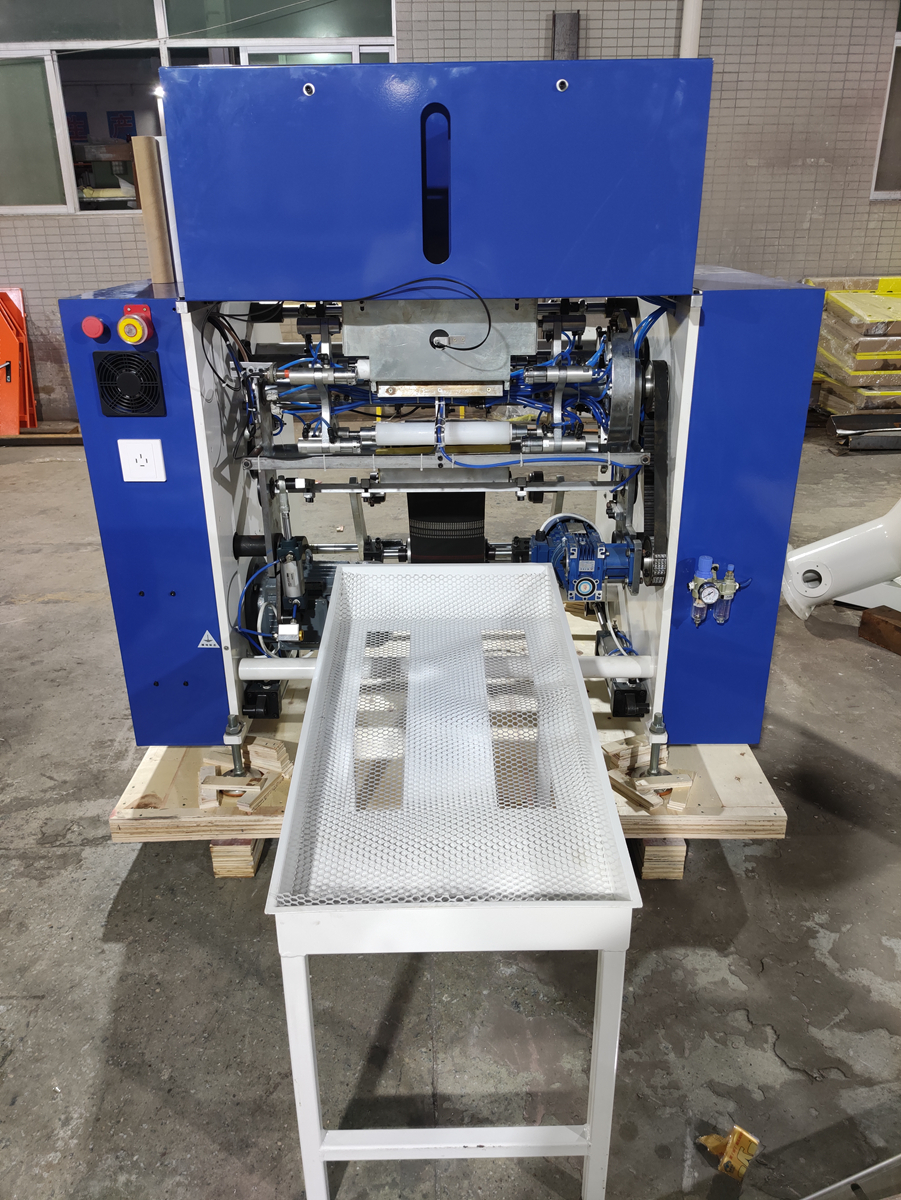

Polyethylene (PE) cling film — thinner and tackier; requires careful tension calibration to avoid blocking. XHD's Automatic PE Cling Film Rewinder is purpose-built for this application.
PVC and polypropylene (PP) — less elastic; require adjusted tension profiles
XHD Machinery offers three primary plastic film rewinder configurations suited to different production needs:
Model | Best For | Key Feature |
|---|---|---|
High-volume hand roll and machine roll production | Integrated slitting + rewinding in one pass | |
Continuous machine roll production | Automatic core loading and roll transfer | |
PE cling film hand roll production | Purpose-built for thin, tacky film materials |
All XHD rewinders are equipped with high-speed motors, accurate positioning mechanisms, user-friendly control interfaces, and integrated safety features.
Q: What is the difference between a stretch film rewinder and a stretch film slitter rewinder?
A: A stretch film rewinder winds film from a parent roll into finished rolls of the same width. A stretch film slitter rewinder simultaneously cuts the parent roll into multiple narrower lanes and winds each lane into separate finished rolls. For operations producing hand rolls from a wide extrusion line, a slitter rewinder is typically required.
Q: Can one stretch film rewinder handle both hand rolls and machine rolls?
A: Some rewinders are configurable for both roll types through adjustable core chuck sizing and tension settings, but purpose-built machines generally outperform universal models in terms of speed and roll quality consistency. Consult the manufacturer about your specific roll weight, width, and volume requirements before purchasing.
Q: How do I match a stretch film rewinder to my existing extrusion line?
A: Key matching criteria include parent roll width (must match the rewinder's maximum working width), line speed (the rewinder must keep pace with extrusion output), and film gauge (the rewinder's tension system must be calibrated for your film thickness). XHD offers consultation support to help buyers match rewinder specifications to their existing stretch film machines.
Q: What maintenance does an automatic stretch film rewinder require?
A: Routine maintenance typically includes blade inspection and replacement (for slitter rewinders), lubrication of drive components, tension sensor calibration, and roller surface cleaning to prevent film buildup. Fully automatic models may also require periodic inspection of the core loading mechanism and film cutting system.
To choose the right stretch film rewinder:
Determine whether you are producing hand rolls, machine rolls, or both
Match the machine's automation level to your production volume and labor capacity
Prioritize tension control quality to ensure consistent, warp-free rolls
Align rewinding speed with your extrusion line output
Confirm slitting capability if your parent rolls are wider than your finished roll width
Verify film material compatibility with your specific PE, PP, or PVC formulations
For high-volume operations or manufacturers scaling from semi-manual to automated production, an automatic stretch film rewinder from XHD delivers measurable gains in throughput, roll quality, and labor efficiency.
