From the pipes that carry our water to the bags that hold our groceries, plastics are a fundamental part of modern life. But have you ever wondered how these everyday items are made? The answer often lies in a powerful piece of industrial equipment: the plastic extrusion machine.
This process is the backbone of the plastics manufacturing industry, responsible for creating a vast range of continuous shapes and profiles. Understanding how a plastic extrusion machine works offers insight into how raw plastic materials are transformed into the finished products we use daily.
This guide will explain the plastic extrusion process, detail the main components of the machine, and explore its various applications. By the end, you'll have a clear understanding of this essential manufacturing technology and its role in producing everything from complex industrial parts to simple, everyday items like stretch film.
Plastic extrusion is a high-volume manufacturing process where a raw plastic material, usually in the form of small pellets or granules, is melted and formed into a continuous profile. Think of it like squeezing toothpaste from a tube. The machine forces the molten plastic through a specially shaped die, which gives the final product its specific cross-sectional shape.
The process begins with feeding plastic resin into the machine's hopper. From there, it enters a long, heated barrel containing a rotating screw. As the screw turns, it propels the plastic forward, simultaneously melting it through a combination of friction and external heaters. Once the plastic is fully molten and homogenized, it's forced through the die. After exiting the die, the newly formed plastic profile is cooled, typically using a water bath or air cooling system, to solidify it into its final shape before being cut to length or wound onto a spool.
While designs can vary depending on the specific application, every plastic extrusion machine shares a few core components that work together to transform raw resin into a finished product.
The process starts at the hopper, a large, funnel-shaped container mounted at the back of the machine. This is where the raw plastic material (resin) is loaded. The hopper gravity-feeds the resin into the feed throat, which is the opening to the main barrel. A well-designed feed system ensures a consistent and steady supply of material to the screw, which is crucial for maintaining the quality and uniformity of the final product.
The barrel and screw are the heart of the plastic extrusion machine. The barrel is a long, cylindrical chamber equipped with electric heating bands. Inside the barrel is the Archimedean screw, which is the key component responsible for conveying, melting, and pressurizing the plastic.
The screw's design is critical. It's typically divided into three distinct zones:
Feed Zone: This section has deep flights (the helical grooves of the screw) and is designed to simply move the solid plastic pellets forward from the hopper.
Transition Zone (or Compression Zone): In this zone, the depth of the screw flights gradually decreases. This compresses the plastic, forcing out trapped air and increasing the friction and shear, which helps melt the material.
Metering Zone: The final section has very shallow flights. Its purpose is to homogenize the molten plastic, ensuring it has a consistent temperature and pressure before it reaches the die.
The drive motor provides the power needed to rotate the screw. Since the screw needs to turn with high torque but at a relatively low speed, a gearbox is used to reduce the motor's speed and increase its torque. This powerful system allows the screw to push against the immense pressure of the melting plastic.
The die is the tool that shapes the molten plastic. It's a specially designed metal plate or block with a precisely machined opening. The shape of this opening determines the final profile of the extruded product. For example, a die with a circular opening produces a rod or pipe, while a flat, wide opening is used for making plastic sheets or films, as seen in a cast film extrusion machine.
Once the plastic exits the die, it must be cooled quickly to solidify its shape. This is typically done by passing the extrusion through a water bath, spraying it with cool water, or blowing cool air over its surface. The cooling method depends on the type of plastic and the profile's thickness.
The versatility of the plastic extrusion process means it's used to create an incredible array of products across countless industries.
One of the most widespread applications is in the production of pipes, tubes, and hoses for plumbing, irrigation, and medical devices. The ability to create long, continuous lengths makes extrusion ideal for these products.
Another significant area is the creation of profiles for window frames, door frames, and siding in the construction industry. Extrusion allows for complex cross-sectional shapes that can include features like weather stripping channels and interlocking elements.

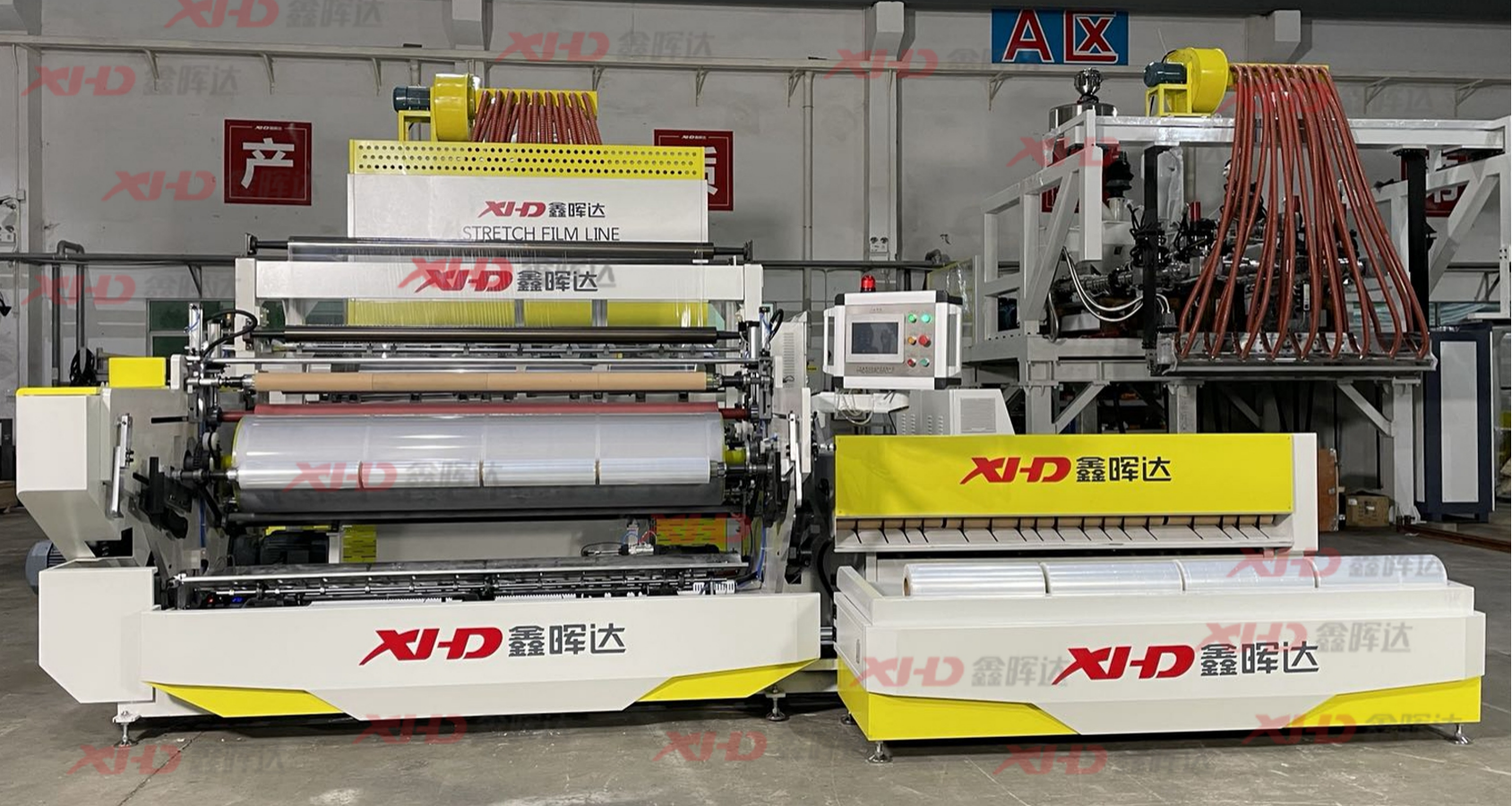

In packaging, the stretch film extruder is a specialized type of cast film extrusion machine that produces the thin, flexible film used to wrap pallets and bundle goods. This film is essential for securing products during shipping and storage. The extrusion process can produce this film in large rolls with consistent thickness and strength.
Other common extruded products include:
Electrical wire insulation and jacketing
Plastic sheeting and films for bags and packaging
Deck railings and fence posts
Automotive trim and seals
Filaments for 3D printing
1
The plastic extrusion machine is a cornerstone of the modern manufacturing landscape. By melting and forming plastic resin into continuous profiles, it enables the efficient, high-volume production of countless products that are integral to our daily lives. From the simple stretch film that secures our packages to the complex profiles that build our homes, the capabilities of this technology are vast and varied.
Understanding the fundamental components and the process itself reveals the engineering ingenuity that turns simple plastic pellets into functional, finished goods. As materials science and technology continue to advance, the applications for plastic extrusion will only continue to grow, solidifying its place as a vital manufacturing process for years to come.
