Operating an extrusion machine can seem complex, but understanding the fundamental steps is key to mastering the process. Whether you're working with plastics, metals, or food products, the core principles of extrusion remain consistent. This guide will walk you through the entire operational sequence, from initial setup and safety checks to shutdown procedures.
By following these instructions, you'll gain the confidence to run an extrusion machine safely and efficiently. We will cover pre-operation checks, the start-up process, monitoring production, and the proper shutdown sequence. This knowledge is crucial for producing high-quality products, maintaining machine longevity, and ensuring a safe working environment for everyone on the production floor.
An extrusion machine is a piece of industrial equipment that creates objects with a fixed cross-sectional profile. It works by forcing material, typically plastic pellets, powder, or metal, through a die of a specific shape. The process is continuous, making it highly efficient for producing long, uniform products like pipes, tubing, window frames, and plastic sheeting.

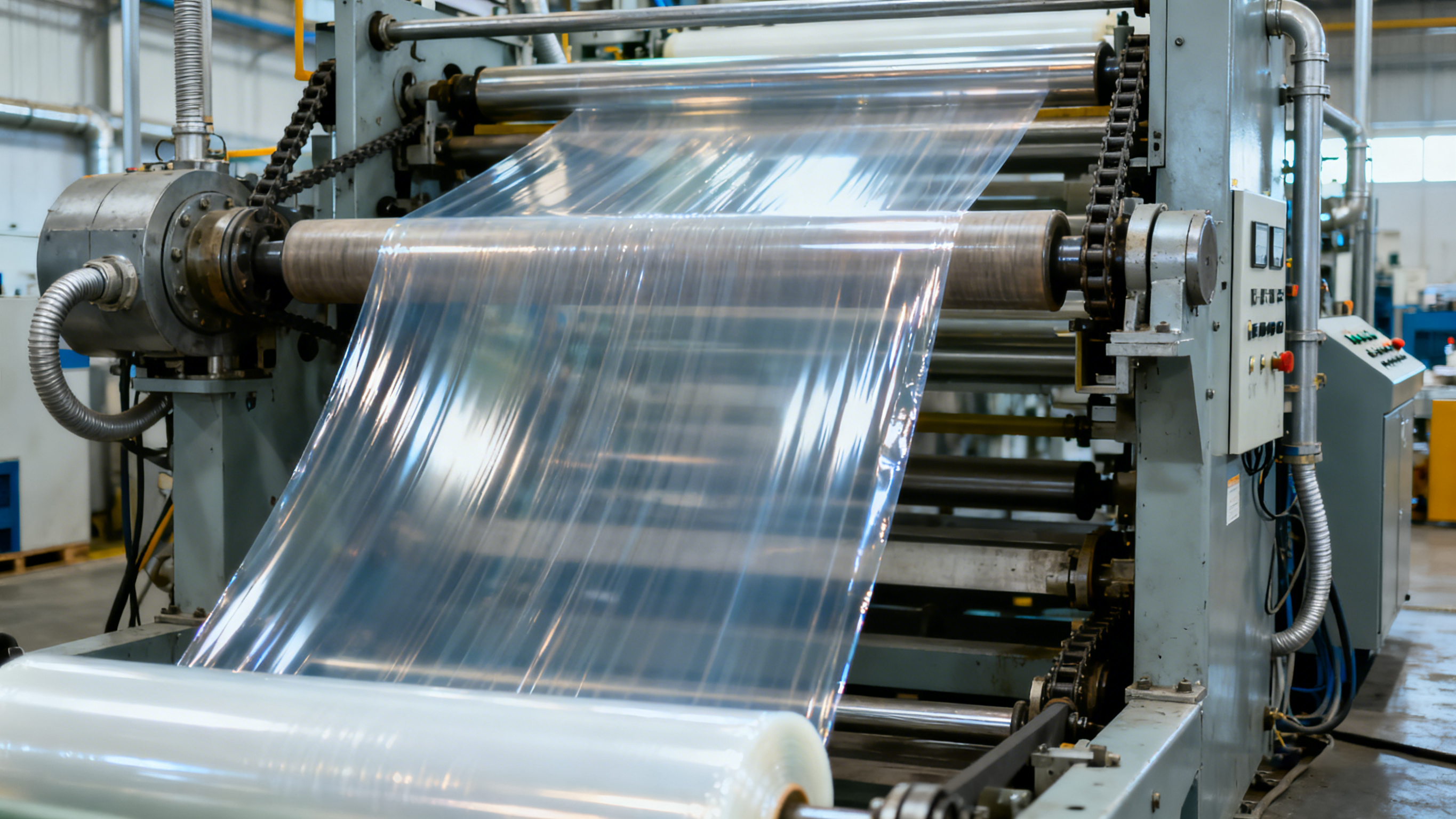

A common type is the stretch film extruder, which is specifically designed to produce thin, stretchable plastic film used for wrapping and securing goods. The core components of most extrusion machines include a hopper for feeding raw material, a barrel containing a rotating screw, heating elements along the barrel, and a die that shapes the final product. The screw conveys the material forward, while the heat melts and mixes it into a consistent molten state before it is forced through the die.
Safety should always be the top priority when working with heavy machinery. Before you even think about turning on the extrusion machine, a thorough safety inspection is mandatory. These checks prevent accidents and ensure the machine is in good working order.
Clear the Area: Ensure the space around the machine is clean, dry, and free of obstacles. Remove any tools, materials, or debris that could pose a tripping hazard.
Check for Leaks: Inspect the machine for any signs of oil, water, or material leaks. Leaks can indicate a maintenance issue and create slippery, hazardous conditions.
Examine Wiring and Connections: Visually inspect all electrical cables and connections for damage, fraying, or loose fittings. Damaged wiring is a serious fire and electrocution risk. Report any issues to maintenance immediately.
Guards in Place: Confirm that all safety guards, shields, and covers are securely in place. These are designed to protect operators from moving parts, hot surfaces, and molten material. Never operate the machine with guards removed.
Test Emergency Stops: Locate all emergency stop buttons and confirm they are accessible and functional. It's good practice to know their locations by heart so you can react quickly in an emergency.
Power Supply: Ensure the main power supply to the machine is on and stable.
Cooling System: If your machine uses a water-cooling system, check that the water supply is turned on and that there are no blockages in the lines. Proper cooling is essential for controlling the temperature of the barrel and the final product.
Compressed Air: Verify that the compressed air supply is at the correct pressure if it's used for any part of the process, like die cleaning or ancillary equipment.
Once all safety checks are complete, you can begin the start-up procedure. Follow these steps methodically to ensure a smooth and successful production run.
The first step is to turn on the main power to the extrusion machine. Once powered, you need to set the temperatures for the different heating zones along the barrel and the die. These temperatures are critical and will vary depending on the type of material you are processing.
Access the Control Panel: Use the machine's control panel (often a PLC touchscreen) to access the temperature settings.
Enter Setpoints: Input the recommended temperatures for each zone. Typically, the temperature gradually increases from the feed zone (near the hopper) to the metering zone (near the die). The die itself will also have its own temperature setpoint.
Allow Time to Heat: It takes time for the machine to reach the target temperatures. Do not proceed to the next step until all zones have stabilized at their setpoints. Rushing this can lead to unmelted material clogging the screw or die.
While the machine is heating up, you can prepare the raw material.
Check Material: Ensure you have the correct type and grade of material for the job. Check for any contamination, as this can cause defects in the final product.
Pre-Drying (If Necessary): Some materials, particularly hygroscopic plastics like PET or nylon, absorb moisture from the air. This moisture can turn into steam during extrusion, causing bubbles and weaknesses in the product. If required, dry the material in a dedicated dryer for the specified time and temperature.
Load the Hopper: Once the material is ready, carefully load it into the machine's hopper. Avoid overfilling and ensure the hopper lid is closed to prevent contamination.
When the machine is at the correct temperature and the material is loaded, you are ready to start extruding.
Start the Screw at Low Speed: Begin by setting the screw speed (RPM) to a very low setting. This allows the material to start moving through the barrel slowly and prevents a sudden pressure buildup.
Monitor Extrudate: Watch the die outlet for the first signs of molten material (extrudate). The initial material may be discolored or inconsistent; this is normal. Allow it to run until the flow becomes steady and has a uniform appearance. This purged material should be collected and disposed of properly.
Gradually Increase Screw Speed: Once you have a consistent flow of material, you can gradually increase the screw speed to the desired production rate. Monitor the motor amperage and pressure readings on the control panel to ensure they remain within safe operating limits.
Running an extrusion machine is not a "set it and forget it" process. Continuous monitoring and adjustment are necessary to maintain product quality.
Check Product Dimensions: Regularly measure the dimensions of the extruded product (e.g., diameter, wall thickness, width) using calipers or other measuring tools.
Visual Inspection: Look for any visual defects such as surface roughness, discoloration, bubbles, or warping.
Adjust Parameters: If the product is out of spec, you may need to adjust parameters like screw speed, barrel temperatures, or take-up speed (the speed at which the product is pulled away from the die). For example, if you are running a stretch film extruder and the film is too thick, you might need to increase the speed of the chill rolls. Small, incremental changes are best.
1
When the production run is complete, the machine must be shut down correctly to prevent material degradation inside the barrel and to ensure it's ready for the next run.
Before stopping the screw, turn off the feed from the hopper. This allows the screw to empty itself of most of the material in the barrel.
It's often necessary to purge the machine with a different material (a purging compound) to clean out the remaining production polymer. This prevents it from degrading and cross-contaminating the next run. Feed the purging compound into the hopper and run the screw at a low speed until the extrudate coming out of the die is clean.
Stop the Screw: Once the barrel is empty or purged, stop the screw's rotation completely.
Turn Off Heaters: Turn off all the heating zones on the control panel.
Power Down: After the heaters are off, you can turn off the main power to the machine. Allow the machine to cool down naturally. Do not use water to rapidly cool the barrel unless it is part of a specific, approved procedure, as this can cause damage.
1
Operating an extrusion machine effectively is a skill that blends technical knowledge with hands-on experience. By following this guide—from rigorous pre-operation checks to methodical start-up and shutdown procedures—you build a strong foundation for safe and efficient operation. Consistent monitoring and a deep understanding of how each parameter affects the final product are what separate a good operator from a great one.
Continue to learn about your specific machine and the materials you work with. Every machine has its own quirks, and every polymer behaves differently. With practice and attention to detail, you will become proficient in producing high-quality extruded products every time.
