In the world of modern manufacturing, extrusion is a cornerstone process, vital for creating a vast array of products, from plastic pipes and window frames to the intricate packaging that protects our food. At the heart of this process lies the extrusion machine, a marvel of engineering that transforms raw materials into continuous profiles with precision and efficiency. This article will explore the fundamental principles of how an extrusion machine works, with a specific focus on the sophisticated Film Extrusion Line.、
At its simplest, extrusion is a process of shaping a material by forcing it through a designed opening, called a die. Think of it like a high-tech playdough factory: you push the soft material through a shaped mold, and a long, continuous strand with that specific shape emerges on the other side. In industrial settings, the material is typically a thermoplastic polymer in the form of pellets, granules, or powder.
An extrusion machine, or extruder, is not a single device but a coordinated system. Its main components work in unison to melt, homogenize, and form the plastic. Here’s a breakdown:
Hopper: The process begins here. Raw plastic material is fed into the hopper, which acts as a reservoir, consistently supplying the extruder barrel.
Barrel and Screw: This is the heart of the extrusion machine. The barrel is a heated, robust cylinder containing a precisely engineered rotating screw. The screw has three main zones:
Feed Zone: This section receives the solid plastic pellets from the hopper and conveys them forward.
Compression (Melting) Zone: Here, the flight depth of the screw decreases, compressing the plastic. Combined with external heaters on the barrel and intense shear friction from the screw's rotation, the plastic melts into a uniform viscous fluid.
Metering Zone: The final section features a shallow, constant flight depth that creates intense pressure and ensures a consistent, homogenous flow of molten plastic into the die. This is critical for a uniform final product.
Heaters and Cooling Systems: Band heaters wrapped around the barrel provide the necessary thermal energy to melt the polymer. Cooling fans prevent the system from overheating due to the shear heat generated by the screw.
Die: The die is a custom-made tool that gives the extruded plastic its final shape. Whether it's a simple circle for a pipe or a complex flat slot for film, the die design is paramount. The molten plastic is forced through this opening, taking its form.
Haul-Off (Puller) and Cooling System: After exiting the die, the hot, soft plastic profile must be cooled and solidified, typically using a water bath or air cooling rings. A haul-off unit, often consisting of caterpillar tracks, gently pulls the cooled profile at a controlled speed, ensuring consistent dimensions and preventing deformation.

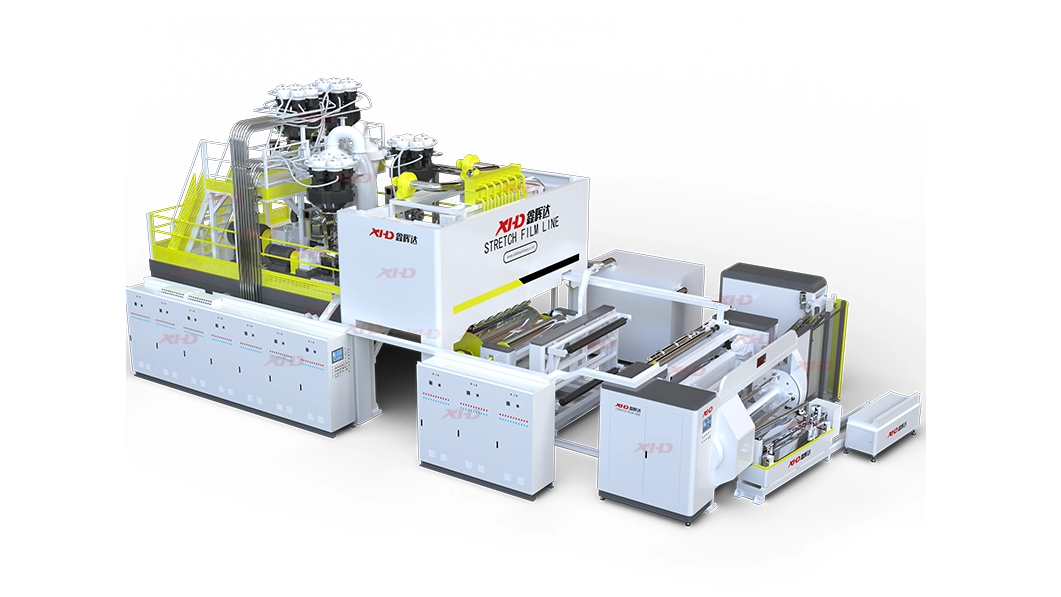

When the goal is to produce thin plastic sheets or films (like shopping bags or food packaging), a specialized Film Extrusion Line is used. This system builds upon the standard extruder but incorporates additional critical components to handle the delicate nature of thin films. There are two primary methods:
Blown Film Extrusion: The molten plastic is extruded upwards through a circular die, forming a thin-walled tube. Air is blown into the center of this tube, inflating it like a balloon into a bubble. This stretching thins the film and aligns its polymer chains, improving strength. The bubble is then collapsed by guides and wound onto rolls.
Cast Film Extrusion: The molten plastic is extruded through a flat, linear die directly onto a large, chilled roller (chill roll). This rapid cooling creates a film with exceptional clarity and flatness. It is then trimmed and wound.
A typical Film Extrusion Line integrates the extruder with these downstream units:
Extruder: Melts and pumps the polymer.
Flat or Circular Die: Forms the initial film shape.
Cooling System (Air Rings or Chill Rolls): Solidifies the film.
Thickness Gauging: Monitors and ensures consistent film thickness.
Surface Treatment (Corona Treater): Modifies the film's surface to improve ink adhesion or printability.
Winder: Rolls the finished film into large master rolls for further conversion.
The following table highlights the key differences between the two main Film Extrusion Line processes:
| Feature | Blown Film Extrusion | Cast Film Extrusion |
|---|---|---|
| Die Type | Circular | Flat (Slot) |
| Direction of Extrusion | Typically Vertical | Typically Horizontal |
| Cooling Method | Air Cooling Rings | Chill Rolls |
| Film Properties | High Strength, Good Clarity | Excellent Clarity, High Gauge Uniformity |
| Molecular Orientation | Bi-axially Oriented (strengthened in both directions) | Primarily Mono-axial Orientation |
| Typical Applications | Shopping Bags, Stretch Film, Agricultural Film | Food Packaging, Laminations, Photographic Film |
The extrusion machine is a testament to the elegance of industrial engineering, turning raw plastic into an endless array of useful shapes. From simple profiles to the high-tech Film Extrusion Line that produces the ubiquitous films of modern life, this process is fundamental to our manufactured world. By understanding the synergy between the hopper, barrel, screw, and die, and the specialized downstream equipment, we can appreciate the precision and control required to create the consistent, high-quality products we rely on every day.
