Packaging efficiently requires the right materials and the right equipment. For manufacturers producing protective wrapping, selecting a stretch film machine is a major decision that directly affects output quality and operational costs. The number of layers a machine can extrude plays a massive role in the final product's strength, stretchability, and puncture resistance.
Understanding the differences between 2, 3, 5, and 7-layer configurations helps businesses match their equipment to their specific production needs. A basic two-layer film works perfectly for standard pallet wrapping. Highly specialized loads might require the advanced load retention of a seven-layer film.
This guide breaks down the core differences between these machine types. We will explore how varying layer counts influence film properties, the advantages of upgrading to an automatic stretch film machine, and why partnering with a reliable manufacturer is crucial for long-term success.
Cast stretch film is produced through a process called co-extrusion. Multiple extruders melt plastic resin and combine it through a single die to form a single sheet of film. The number of extruders and the design of the die block determine how many layers the film has.
Adding more layers does not necessarily make the film thicker. Instead, it allows manufacturers to distribute different materials throughout a highly controlled, microscopically thin structure. You can place sticky adhesive resins on the outside layer for cling, while putting tough, puncture-resistant resins in the core layers.
As layer counts increase, manufacturers gain more control over the film's mechanical properties. This precision helps reduce the total amount of plastic needed per roll, saving money on raw materials while maintaining excellent load stability.
Every production facility has unique requirements. Here is a closer look at what each machine configuration offers.
For many years, two and three-layer machines were the undisputed standard for cast film production. These machines are incredibly cost-effective and relatively simple to operate.
A 3-layer stretch film machine typically uses an A/B/C or A/B/A structure. One side provides the cling, the middle provides the core strength, and the opposite side provides a smooth release surface. This configuration produces high-quality film suitable for most standard warehouse applications, from wrapping standard pallets to securing lightweight boxes.
These machines require a lower initial investment compared to their multi-layer counterparts. They are highly reliable and offer a straightforward path to high-volume production.
As supply chains become more demanding, packaging requirements have evolved. A 5-layer stretch film machine provides a significant upgrade in film performance.
With five distinct layers, operators can use specialized resins like metallocene in the sub-layers. This greatly improves the film's tear resistance and elasticity. You can stretch a five-layer film much further than a three-layer film before it breaks.
This extra stretchability means end-users consume less film per pallet. The manufacturer benefits by offering a premium product that provides better value to their customers.
A 7-layer stretch film machine represents the cutting edge of cast film extrusion technology. These advanced systems create ultra-thin films that boast extreme strength and load retention.
By breaking the film down into seven micro-layers, the machine minimizes the risk of pinholes or weak spots in the plastic. Manufacturers can carefully blend expensive, high-performance resins into very specific layers, optimizing the cost of raw materials.
Seven-layer films are ideal for heavy-duty applications, sharp-edged loads, and high-speed automatic wrapping operations. While the machinery requires a larger upfront investment, the ability to produce top-tier, highly profitable film often results in an excellent return on investment.
Upgrading to an automatic stretch film machine is one of the easiest ways to scale your production and reduce labor costs. Manual machines require constant supervision, especially during roll changes.
Fully automatic machines streamline the entire process. They handle tasks like cutting the film, changing the paper cores, and unloading the finished rolls without operator intervention. Some advanced systems feature high-speed four-air-shaft center winders, which drastically reduce downtime between roll changes.
Automation also improves consistency. Automated tension controls and thickness monitors ensure that every roll produced meets strict quality standards, reducing waste and keeping your customers happy.
When investing in heavy industrial equipment, the manufacturer's reputation matters. Guangdong Xinhuida Machinery Technology Co., Ltd. has specialized in cast stretch film machines since 2006. Recognized as a National High New-Tech Enterprise, XHD operates a modernized 60,000-square-meter factory equipped with leading CNC processing equipment.
Choosing an XHD machine means partnering with a proven industry leader. The company holds 90 international technology
patents and strictly adheres to CE certification standards. Their commitment to innovation and quality has allowed them to export machinery to more than 80 countries, including the US, Russia, India, Turkey, and Mexico.
Major international packaging companies rely on XHD equipment to run their daily operations:
Tianyuan Group purchased 14 sets of stretch film machines from XHD to support their massive global e-commerce logistics network.
VVR Poly in India uses four XHD machines to reach a daily production capacity of 35 tons.
Asir Plast has grown into one of Turkey's largest stretch film manufacturers using XHD technology.
From highly efficient 1000mm 2-layer machines to fully automatic 2000mm 5-layer cast film lines, XHD offers a wide range of configurations to meet specific production goals.

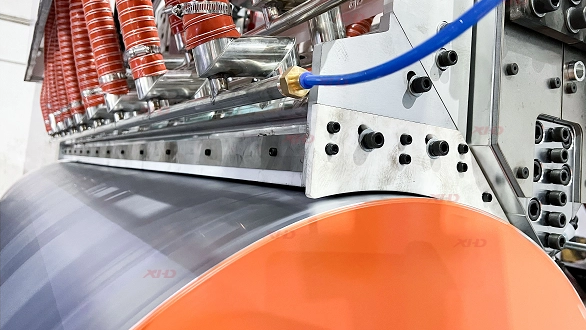

Cast stretch film is produced by pushing melted plastic through a flat die and cooling it quickly on chill rollers. This creates a clear film that unwinds quietly. Blown film is extruded through a circular die and inflated into a bubble. Cast film is generally preferred for standard pallet wrapping due to its clarity, consistent thickness, and lower production costs.
Machine width determines how many rolls you can produce simultaneously. A 1000mm machine can produce two standard 500mm rolls at once. A 1500mm machine produces three, and a 2000mm machine produces four. Choose a width based on your target daily capacity and your available factory floor space.
Many modern machines offer versatile production capabilities. Depending on the specific extruder and die configuration, you can often adjust the equipment to produce PE cling film for food packaging or heavy-duty silage film for agricultural use.
Selecting the correct layer configuration is a critical step in optimizing your stretch film production. Two and three-layer machines provide reliable, cost-effective performance for standard applications. Five and seven-layer machines unlock premium film properties, allowing you to reduce material costs and target specialized packaging markets.
Automating these processes further protects your profit margins by reducing labor dependencies and minimizing material waste. The key is finding reliable equipment that scales with your business goals.
To explore a complete catalog of high-performance extrusion equipment, visit https://www.xhdte.com/. Their team can help you find the perfect machine to maximize your production output.
