Plastic packaging plays a vital role in protecting and transporting goods across the globe. From wrapping pallets in a warehouse to sealing fresh food in a grocery store, the demand for durable and clear materials is constant. Producing these materials efficiently requires advanced engineering and highly controlled manufacturing methods.
One of the most effective methods for creating these materials is the cast film extrusion process. This technique allows manufacturers to create high-clarity, high-strength films at remarkable speeds. It relies on specialized equipment to melt raw plastic resin and form it into continuous, uniform sheets that are critical for modern supply chains.
Understanding how a cast film extrusion machine operates can help packaging professionals optimize their production lines and select the best machinery for their business. This guide will break down the mechanics behind plastic film extrusion, compare it to alternative production methods, and explore the key components that make this technology so valuable.
Plastic film extrusion generally falls into two primary categories: cast film and blown film. While both processes start with melting polymer resins inside an extruder, their forming and cooling stages differ significantly.
In the cast film method, the molten plastic is pushed through a flat T-die and immediately cooled on large, water-chilled rollers. This rapid cooling halts the crystallization process instantly. As a result, the finished product boasts exceptional optical clarity and a highly uniform thickness. The straight-line path of the web also allows these machines to run at extremely high production speeds.
Blown film extrusion forces the melted resin through a circular die to create a continuous tube or bubble. Air inflates the bubble, and cooling rings blow air onto the exterior to lower its temperature. This slower cooling process creates a tougher material that resists puncturing, but it yields a cloudy appearance and runs at slower speeds compared to cast methods.
Creating flawless packaging materials requires a tightly regulated environment. The cast film extrusion process follows a precise sequence of events to transform raw plastic pellets into tightly wound rolls of finished film.
Production begins in the extruder. Raw plastic pellets (such as polyethylene or polypropylene) are fed into a heated barrel. A rotating screw forces the resin forward, using intense friction and external heaters to melt the solid plastic into a viscous, continuous liquid.
Once the plastic is thoroughly melted and mixed, the machine forces it through a flat extrusion die, commonly known as a T-die. This die shapes the molten polymer into a thin, wide sheet. Many modern operations use co-extrusion, bringing multiple layers of different plastics together inside the die to create a single sheet with specialized properties. This layered approach is perfect for creating enhanced moisture barriers or improving tensile strength.
The hot plastic sheet immediately drops out of the T-die and onto a series of rotating, water-cooled rollers. The temperature drops rapidly, freezing the molecular structure of the plastic in place. This high-efficiency cooling stage is exactly what gives the film its signature transparency and smooth texture.
After cooling, the edges of the sheet are trimmed to ensure a perfectly straight and uniform width. The discarded edge trims are ground up and recycled back into the extruder to minimize waste. Finally, an automated winding system collects the finished material onto large paper or plastic cores, creating jumbo rolls ready for shipping or further converting.
Producing consistent, high-quality material requires heavy-duty machinery. A top-tier cast film extrusion machine integrates several advanced components to handle continuous, high-speed operations without sacrificing quality.
The T-die is the heart of the operation. Precision die systems ensure the molten plastic flows evenly across the entire width of the machine. Any variation in flow can cause uneven thickness, which compromises the final product. Automatic profile control systems monitor the thickness in real-time, making microscopic adjustments to the die to maintain strict tolerances.
Because the cast process relies on rapid temperature reduction, the chill rollers must operate flawlessly. High-efficiency cooling systems use internal spiral channels to circulate cold water just beneath the surface of the roller. This design extracts heat from the plastic sheet instantly, preventing cloudiness and ensuring a glossy finish.

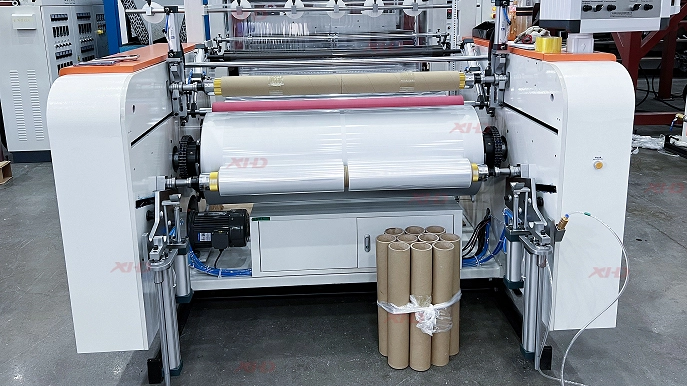

Managing the final output requires precision tension control. Automated winding systems catch the cooled plastic and spool it onto cores without stretching or wrinkling the material. Modern machines feature automatic roll-changing capabilities, allowing the equipment to continuously run without human intervention when a roll reaches its maximum capacity.
The speed and optical clarity of the cast method make it ideal for a wide variety of commercial and industrial applications.
Stretch film relies heavily on the cast process. Warehouses and logistics companies use this highly elastic material to secure pallets of goods for transit. The excellent cling properties and high transparency allow workers and barcode scanners to read labels directly through the wrapping.
Co-extruded cast films are a staple in the food and beverage industry. Manufacturers combine layers of different polymers to block oxygen, seal in moisture, and keep perishable items fresh for longer periods.
The medical industry requires strict hygiene and performance standards. Cast plastics are frequently used to manufacture breathable films, protective gowns, and sterile barrier packaging for surgical instruments.
The straight-line path and immediate contact with water-chilled rollers allow cast lines to operate rapidly. Air cooling, which is used in the blown method, removes heat much slower, limiting the speed at which the machinery can safely operate.
Polyethylene (PE), specifically linear low-density polyethylene (LLDPE), and polypropylene (PP) are the most common resins used. Some specialized lines also process EVA and barrier materials depending on the packaging requirements.
Yes. Most modern production lines feature integrated granulators. These units chop the trimmed edges into small pieces and automatically feed them back into the main extruder hopper, eliminating waste and significantly reducing material costs.
Investing in the right equipment is critical for keeping packaging operations efficient and competitive. Upgrading to advanced extrusion technology allows manufacturers to increase their daily output, reduce material waste, and improve the optical quality of their products.
If you need a reliable cast film extrusion machine, XHD Machinery provides industry-leading solutions tailored to your production demands. Founded in 2006, XHD Machinery leverages over 19 years of expertise as a premier manufacturer in China, delivering high-speed, automated equipment to over 100 countries. Visit www.xhdte.com to explore a comprehensive range of cast stretch film machines, silage film extruders, and smart factory solutions designed to drive your business forward.
