Plastic film is everywhere. From the clear wrap preserving your leftovers to the sturdy bags carrying your groceries and the protective layers on medical devices, it is a material that shapes modern convenience. But how does a pile of plastic pellets transform into a continuous, thin, flexible sheet? The answer lies in a manufacturing process called plastic film extrusion.
This process is the backbone of the flexible packaging industry. It combines heat, pressure, and precision engineering to melt down raw plastic and reshape it into a usable film. For manufacturers and curious minds alike, understanding this process reveals the complexity behind something that looks so simple.
Plastic film extrusion is a high-volume manufacturing process in which raw plastic material is melted and formed into a continuous film. This film can be incredibly thin—sometimes thinner than a human hair—or thick enough to serve as a heavy-duty liner.
The process begins with raw plastic resin, usually in the form of small pellets or beads. These pellets are fed into an extrusion machine, where they are heated until molten. The molten plastic is then forced through a die, which gives it shape, before being cooled and wound onto rolls.
While the basic concept is straightforward—melt, shape, cool—the execution requires sophisticated technology. The type of extrusion machine used depends heavily on the desired properties of the final film, such as its clarity, strength, and barrier capabilities.
There are two primary methods used in the industry today: Blown Film Extrusion and Cast Film Extrusion. Each uses a different technique to shape the molten plastic and results in films with distinct characteristics.
Blown film extrusion is the most common method for producing films used in packaging, such as shopping bags and industrial sheeting.
In this process, the molten plastic is extruded through a circular die, creating a tube. Air is then blown into the center of this tube, expanding it like a balloon. This expansion stretches the plastic in both transverse and machine directions, giving the film excellent mechanical strength. The "bubble" of plastic is pulled upwards, cooled by air rings, and then collapsed by rollers before being wound up.
Key Advantages:
Produces tough, strong films.
Efficient for making bags (since it already forms a tube).
Generally lower scrap rates.

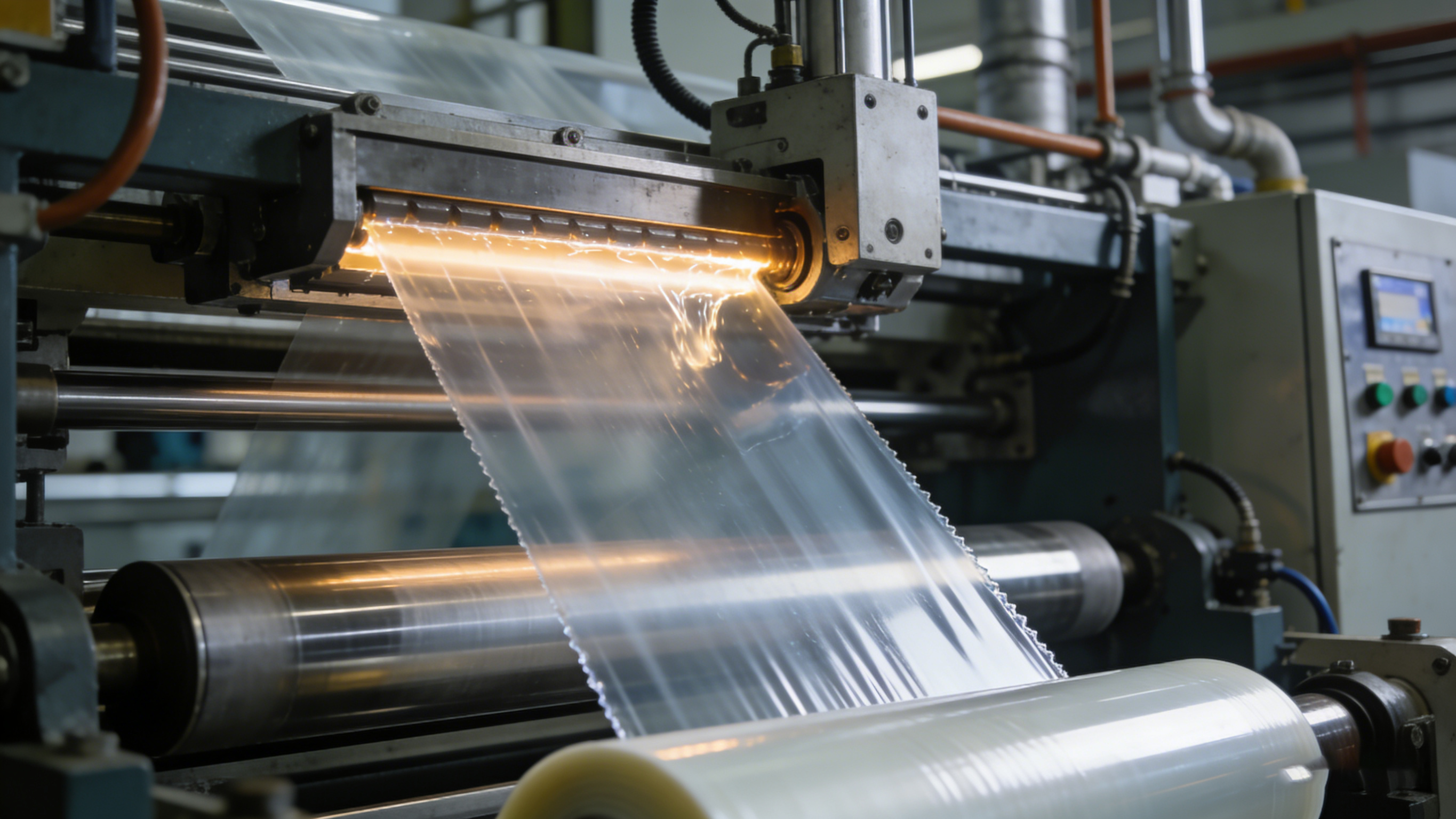

Cast film extrusion involves extruding the molten plastic through a flat die onto a chilled roller. The contact with the cold roller rapidly cools the plastic, "casting" it into a flat sheet.
Because the cooling happens so quickly, the crystalline structure of the plastic is different from blown film. This results in superior optical properties. Cast films are typically clearer and have a glossy finish. They are often used for stretch wrap, food packaging, and photo albums.
Key Advantages:
Superior clarity and gloss.
More precise control over film thickness (gauge).
Higher production speeds compared to blown film.
Feature | Blown Film Extrusion | Cast Film Extrusion |
|---|---|---|
Cooling Method | Air cooling (bubble) | Contact with chilled rollers |
Film Clarity | Lower clarity (hazier) | High clarity (glossy) |
Strength | High mechanical strength | Lower strength, easier to tear |
Thickness Control | Less precise | Extremely precise |
Common Uses | Grocery bags, agricultural film, heavy-duty sacks | Stretch wrap, food packaging, lamination |
Production Speed | Slower | Faster |
Regardless of whether the method is blown or cast, the heart of the operation is the extrusion machine. Understanding the components of this machine helps clarify how the raw material transforms into the final product.
The process starts at the hopper, a funnel-shaped container. Plastic pellets (often polyethylene or polypropylene) are loaded here. Additives, such as UV inhibitors, colorants, or anti-static agents, are often mixed with the resin at this stage to give the film specific properties.
Gravity feeds the pellets from the hopper into the barrel of the extruder. Inside the barrel is a long, rotating screw. As the screw turns, it pushes the plastic forward.
The friction generated by the screw, combined with external heaters along the barrel, melts the pellets. By the time the plastic reaches the end of the barrel, it is a consistent, viscous liquid.
Before the molten plastic enters the die, it passes through a screen pack. This filter removes any contaminants or un-melted particles. This step is crucial for maintaining the integrity of the film and preventing "gels" or weak spots in the final product.
This is the critical forming stage.
For Blown Film: The plastic flows through a circular (annular) die to form a tube.
For Cast Film: The plastic flows through a flat (slot) die to create a flat curtain of melt.
The molten plastic must be cooled immediately to hold its shape.
Blown Film: Air cools the bubble as it travels upward.
Cast Film: The melt hits a chilled roller (chill roll) which freezes the plastic instantly.
Once cooled and solidified, the film passes through a series of rollers (nips) that maintain tension. Finally, the film is wound onto a core, creating large rolls ready for shipping or further processing, such as printing or bag-making.
The versatility of plastic film comes from the wide variety of resins available. Manufacturers choose materials based on the performance requirements of the end product.
Material | Full Name | Properties | Common Applications |
|---|---|---|---|
LDPE | Low-Density Polyethylene | Flexible, transparent, moisture-resistant | Bread bags, shrink wrap, squeeze bottles |
LLDPE | Linear Low-Density Polyethylene | High tensile strength, puncture-resistant | Stretch film, heavy-duty sacks, thin films |
HDPE | High-Density Polyethylene | Strong, stiff, chemical-resistant | Grocery bags, cereal box liners, construction film |
PP | Polypropylene | High clarity, high melting point, barrier to moisture | Food packaging (snacks), flower sleeves, apparel bags |
PVC | Polyvinyl Chloride | Durable, clear, clings well | Food wrap (cling film), medical packaging |
The plastic film extrusion industry is currently undergoing a significant shift driven by sustainability. With global pressure to reduce plastic waste, manufacturers are innovating rapidly.
We are seeing a rise in multilayer co-extrusion. This technology allows manufacturers to combine different materials into a single, thin film. For example, a 5-layer film might use a strong material for the core, a UV-resistant material for the outside, and a food-safe material for the inside. This maximizes performance while minimizing the total amount of plastic used.
Furthermore, extrusion machines are being adapted to handle bioplastics and recycled materials (PCR - Post-Consumer Recycled). Processing these materials can be tricky because they behave differently than virgin plastic when melted, but advancements in screw design and temperature control are making sustainable films more viable than ever.
Extrusion creates a continuous profile, like a pipe, sheet, or film. It pushes material through a die, similar to squeezing toothpaste out of a tube. Injection molding involves injecting molten plastic into a closed mold to create discrete, 3D parts like bottle caps or toy figures.
Yes, but it presents challenges. Recycled plastic often has lower melt strength and can contain impurities. Modern extrusion machines are increasingly equipped with better filtration systems and specialized screws to handle recycled content effectively.
Co-extrusion is a process where two or more different polymer materials are extruded simultaneously and combined into a single, multi-layered film. This allows the film to have combined properties, such as a barrier layer for oxygen resistance paired with a tough outer layer for durability.
Precise temperature control is vital because different plastics melt at different temperatures. If the heat is too low, the plastic won't melt completely, leading to lumps. If it's too high, the polymer can degrade or burn, ruining the film's physical properties and appearance.
Plastic film extrusion is a complex interplay of chemistry and engineering. Whether it is the robust, blown film used for industrial shipping or the crystal-clear cast film protecting fresh produce, the technology behind these materials is essential to our daily lives. As the industry moves toward greener materials and more efficient machinery, the humble plastic film will continue to evolve, offering smarter and more sustainable solutions for the future.
