Modern agriculture depends on efficient silage production to preserve animal feed throughout the year. Central to this process is the agricultural cast silage stretch film extruder, a specialized piece of equipment that produces the protective plastic films essential for maintaining silage quality. Understanding how these machines work and their role in agricultural operations can help farmers and agricultural equipment manufacturers make informed decisions about silage preservation technology.
Cast silage stretch films create an airtight seal around forage materials, preventing spoilage and maintaining nutritional value. The stretch film extruder transforms raw plastic materials into the high-quality films that protect millions of tons of animal feed worldwide. This comprehensive guide explores the technology, applications, and benefits of agricultural cast silage stretch film extruders.
Agricultural cast silage stretch films are specialized plastic films designed specifically for wrapping and preserving silage. These films differ significantly from standard plastic wraps in their composition, strength, and barrier properties.
The stretch film extruder uses a cast extrusion process to create continuous sheets of plastic film. Raw plastic resin, typically linear low-density polyethylene (LLDPE), is fed into the extruder hopper. The machine heats and melts the plastic, then forces it through a wide flat die to create a thin, uniform sheet.
The molten plastic sheet passes over a series of temperature-controlled rollers that cool and solidify the material. This casting process creates films with excellent clarity, consistent thickness, and superior mechanical properties compared to blown film alternatives.
Agricultural cast silage stretch films must meet specific performance requirements to effectively preserve silage. The films typically range from 15 to 30 microns in thickness, providing the right balance of strength and flexibility.
Key properties include high puncture resistance to withstand rough handling and sharp edges in forage materials. The films also feature excellent cling properties that allow multiple layers to adhere tightly together, creating an airtight seal around silage bales.
UV resistance is another critical property, as silage bales are often stored outdoors for extended periods. The films contain UV stabilizers that prevent degradation from sunlight exposure, maintaining their integrity throughout the storage period.
The heart of the stretch film extruder is the extrusion system, which consists of the extruder screw, barrel, and heating elements. The extruder screw conveys and melts the plastic resin while the barrel provides the heated chamber where melting occurs.
Modern agricultural stretch film extruders feature precisely controlled heating zones that ensure optimal melting and mixing of the plastic material. Temperature control is critical for producing films with consistent properties and avoiding defects like gel particles or thickness variations.
The flat die system creates the wide, thin sheet of molten plastic that becomes the finished film. Die width typically ranges from 1,500 to 3,000 millimeters for agricultural applications, allowing production of wide films that can efficiently wrap large silage bales.
The casting roll system consists of multiple temperature-controlled rollers that cool and solidify the plastic film. The primary casting roll, often called the chill roll, is typically cooled with circulating water to rapidly solidify the molten plastic.

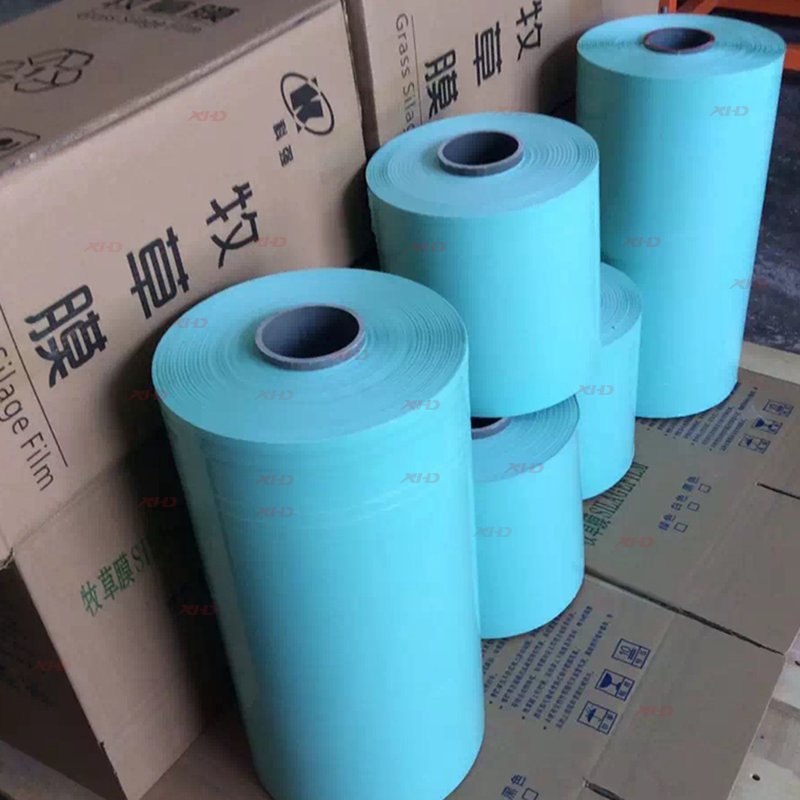

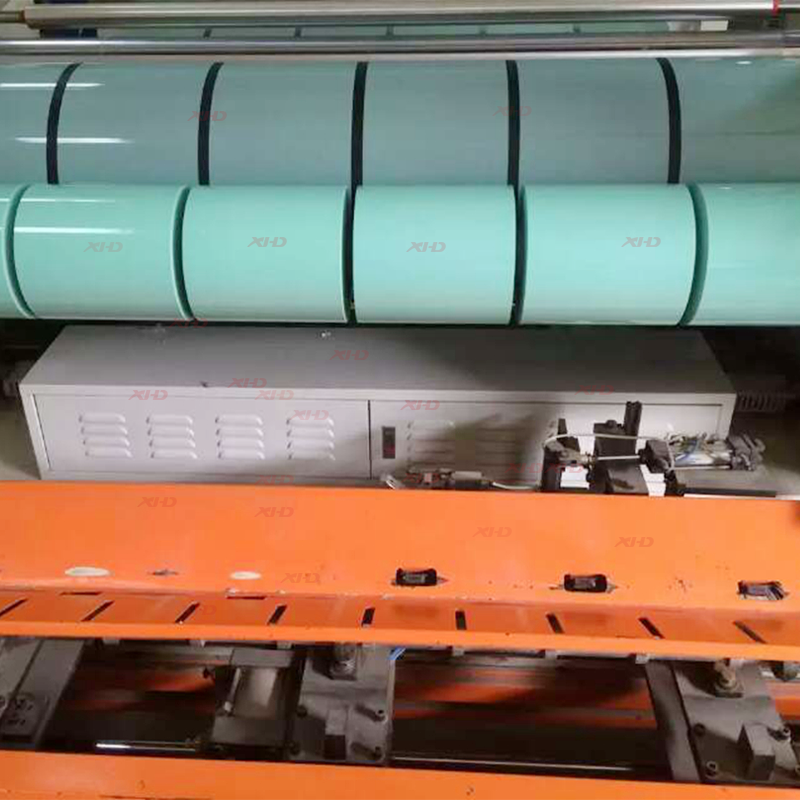

After the film is cast and cooled, it passes through slitting equipment that cuts the wide film into narrower rolls suitable for agricultural applications. Standard silage film widths range from 500 to 750 millimeters, matching the requirements of silage wrapping equipment.
The winding system creates finished rolls of film with consistent tension and neat edges. Proper winding is essential for trouble-free unwinding during the silage wrapping process.
The primary application for cast silage stretch film is wrapping round and square silage bales. The film creates an anaerobic environment that allows beneficial fermentation while preventing spoilage from oxygen exposure.
Properly wrapped silage bales maintain their nutritional value for 12 to 24 months, allowing farmers to preserve feed quality across seasons. The film also protects silage from weather damage and contamination, reducing feed losses.
Agricultural stretch films are also used to cover bunker silos and silage piles. The films provide an airtight seal over the silage surface, preventing top spoilage and maintaining feed quality throughout the storage period.
The flexibility and conformability of cast stretch films allow them to follow the contours of irregular silage surfaces, creating effective seals even on uneven surfaces.
Using high-quality cast silage stretch films provides significant economic benefits for agricultural operations. Reduced feed losses translate directly to cost savings, as properly preserved silage maintains its nutritional value and palatability.
The films also reduce labor costs associated with silage management, as wrapped bales can be stored and transported more efficiently than loose silage materials.
Modern agricultural stretch film extruders can produce films at rates ranging from 200 to 800 kilograms per hour, depending on film thickness and line speed. Higher production rates allow film manufacturers to meet the seasonal demand peaks that occur during silage harvesting periods.
Line speeds typically range from 150 to 400 meters per minute, with actual speeds depending on film thickness and quality requirements. Faster production speeds help reduce manufacturing costs while maintaining film quality.
Agricultural stretch film extruders incorporate sophisticated quality control systems to ensure consistent film properties. Thickness monitoring systems use beta-ray gauges or infrared sensors to measure film thickness across the entire width of the film.
Automated thickness control systems adjust die gap or line speed to maintain consistent thickness within tight tolerances. This control is essential for producing films that perform reliably in agricultural applications.
Like other industrial equipment, agricultural stretch film extruders require regular maintenance to ensure optimal performance and longevity. Preventive maintenance programs should include regular inspection and replacement of wear components such as screw flights, die lips, and drive components.
Heating element maintenance is particularly important, as failed heaters can cause temperature variations that affect film quality. Regular cleaning of the die and casting rolls prevents contamination that could create film defects.
Proper operator training is essential for safe and efficient operation of stretch film extruders. Operators must understand the relationship between processing parameters and film properties to produce consistent quality films.
Safety training should cover proper procedures for die changes, material handling, and emergency shutdown procedures. The high temperatures and pressures involved in extrusion require careful attention to safety protocols.
The agricultural film industry is increasingly focused on developing sustainable materials and processes. Biodegradable films that break down naturally after use are being developed to reduce environmental impact.
Recyclable films made from post-consumer recycled materials are another area of development, helping to create a circular economy for agricultural plastics.
Advanced film technologies are incorporating smart features such as color-changing indicators that signal when silage has reached optimal fermentation levels. These innovations help farmers optimize their silage management practices.
Improved barrier properties and multi-layer film structures are being developed to provide even better protection for silage materials, extending storage life and maintaining feed quality.
Selecting the appropriate agricultural stretch film extruder depends on several factors including production volume requirements, film specifications, and budget considerations. Manufacturers should evaluate their target market needs and production capacity requirements before making equipment decisions.
Consider factors such as film width capabilities, production speed requirements, and quality control features when comparing different extruder options. The investment in high-quality extrusion equipment pays dividends in consistent film quality and reliable operation.
Technical support and service availability are also important considerations, as specialized agricultural equipment requires knowledgeable service support to maintain optimal performance.
Agricultural cast silage stretch film extruders play a vital role in modern agriculture by producing the films that preserve animal feed quality and reduce waste. Understanding the technology, applications, and operational requirements of these machines helps manufacturers and farmers make informed decisions about silage preservation equipment.
The investment in quality stretch film extruder technology supports the broader agricultural industry by enabling efficient feed preservation and reducing food waste. As agricultural operations continue to grow and modernize, the demand for high-quality silage films will continue to drive innovation in extrusion technology.
Success in agricultural film production depends on understanding customer needs, maintaining equipment properly, and staying current with technological developments. The combination of reliable equipment, skilled operators, and quality materials creates the foundation for producing films that meet the demanding requirements of modern agriculture.
